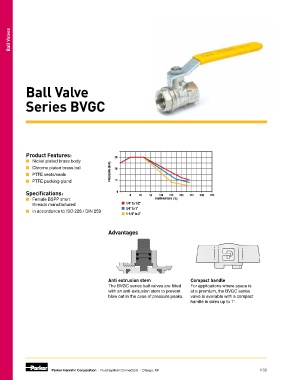

Page 360 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves

Ball Valve

Series BVGC

Product Features: 30
■ Nickel plated brass body
■ Chrome plated brass ball 20
■ PTFE seats/seals PRESSURE (BAR)
■ PTFE packing gland 10
Specifications: 0 0 25 50 100 125 150 175 200 225
■ Female BSPP short TEMPERATURE (°C)
threads manufactured 1/4" to 1/2"
3/4" to 1"
■ in accordance to ISO 228 / DIN 259
1-1/4" to 2"

Advantages

Anti extrusion stem Compact handle
The BVGC series ball valves are fitted For applications where space is
with an anti-extrusion stem to prevent at a premium, the BVGC series
blow out in the case of pressure peaks. valve is available with a compact
handle in sizes up to 1”.

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K50
