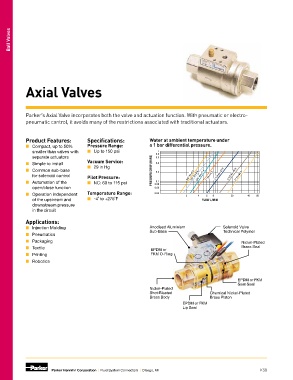

Page 368 - Brass, Composite and Thermoplastic Fittings and Valves

Ball Valves

Axial Valves

Parker’s Axial Valve incorporates both the valve and actuation function. With pneumatic or electro-
pneumatic control, it avoids many of the restrictions associated with traditional actuators.

Product Features: Specifications: Water at ambient temperature under
■ Compact, up to 50% Pressure Range: a 1 bar differential pressure.
smaller than valves with ■ Up to 150 psi 0.8 1
separate actuators 0.6
■ Simple to install Vacuum Service: 0.4
■ 29 in Hg
■ Common sub-base PRESSURE DROP (BARS) 0.2
for solenoid control Pilot Pressure: 3/8" Kv=6.9 1/2" Kv=8.8 3/4" Kv=11.4 1" Kv=14.5 1"1/4 Kv=27.9 1"1/2 Kv=48.8 2" Kv=68.9
0.1
■ Automation of the ■ NC: 60 to 115 psi 0.08
open/close function 0.06
■ Operation independent Temperature Range: 0.04 2 4 6 8 20 40 60
of the upstream and ■ -4˚ to +275˚F FLOW L/MIN
downstream pressure
in the circuit

Applications:
■ Injection Molding Anodised Aluminium Solenoid Valve
Sub-Base
■ Pneumatics Technical Polymer
■ Packaging Nickel-Plated
■ Textile EPDM or Brass Seal
■ Printing FKM O-Ring
■ Robotics

EPDM or FKM
Seat Seal
Nickel-Plated
Shot-Blasted Chemical Nickel-Plated
Brass Body Brass Piston
EPDM or FKM
Lip Seal

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI K58
