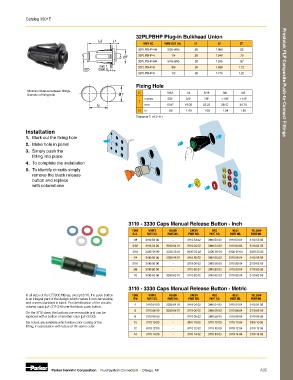

Page 61 - Brass, Composite and Thermoplastic Fittings and Valves
P. 61
Catalog 3501E
32PLPBHP Plug-in Bulkhead Union
L 2 L 1
PART NO. TUBE SIZE (IN) L1 L2 ØT
32PLPBHP-4M 5/32 (4M) .26 1.080 .62
Ø T 32PLPBHP-4 1/4 .26 1.240 .75
32PLPBHP-8M 5/16 (8M) .30 1.280 .87
mini 1 32PLPBHP-6 3/8 .30 1.630 1.12
Ø D maxi 4
32PLPBHP-8 1/2 .30 1.710 1.25
Fixing Hole Prestolok PLP Composite Push-to-Connect Fittings
Minimum distance between fittings. D 5/32 1/4 5/16 3/8 1/2
Diameter of fixing hole. ø T
inches 5/8” 3/4” 7/8” 1 1/8” 1 1/4”
T
N mm 15.87 19.05 22.22 28.57 31.75
N in .89 1.00 1.08 1.34 1.50
Tolerance T: +0.3 -0.1
Installation
1. Mark out the fixing hole
2. Make hole in panel
3. Simply push the
fitting into place
4. To complete the installation
5. To identify circuits simply
remove the black release
button and replace
with colored one
3110 - 3330 Caps Manual Release Button - Inch
TUBE WHITE BLACK GREEN RED BLUE YELLOW
O.D. PART NO. PART NO. PART NO. PART NO. PART NO. PART NO.
1/8 3110 53 00 - 3110 53 02 3110 53 03 3110 53 04 3110 53 05
5/32 3110 04 00 3330 04 01 3110 04 02 3110 04 03 3110 04 04 3110 04 05
3/16 3330 55 00 3330 55 01 3330 55 02 3330 55 03 3330 55 04 3330 55 05
1/4 3110 56 00 3330 56 01 3110 56 02 3110 56 03 3110 56 04 3110 56 05
5/16 3110 08 00 - 3110 08 02 3110 08 03 3110 08 04 3110 08 05
3/8 3110 60 00 - 3110 60 02 3110 60 03 3110 60 04 3110 60 05
1/2 3110 62 00 3330 62 01 3110 62 02 3110 62 03 3110 62 04 3110 62 05
3110 - 3330 Caps Manual Release Button - Metric
In all sizes of the LF3000 fittings, except 3/16, the push button TUBE WHITE BLACK GREEN RED BLUE YELLOW
is an integral part of the design which makes it non-removable, MM PART NO. PART NO. PART NO. PART NO. PART NO. PART NO.
and comes standard in black. For identification of the circuits,
colored caps (p/n 3110) fit over the black push button. 4 3110 04 00 3330 04 01 3110 04 02 3110 04 03 3110 04 04 3110 04 05
On the 3/16 sizes, the buttons are removable and can be 6 3110 06 00 3330 06 01 3110 06 02 3110 06 03 3110 06 04 3110 06 05
replaced with a button of another color (p/n 3330). 8 3110 08 00 - 3110 08 02 3110 08 03 3110 08 04 3110 08 05
Six colors are available which allow color coding of the 10 3110 10 00 - 3110 10 02 3110 10 03 3110 10 04 3110 10 05
fitting, in association with tubes of the same color.
12 3110 12 00 - 3110 12 02 3110 12 03 3110 12 04 3110 12 05
14 3110 14 00 - 3110 14 02 3110 14 03 3110 14 04 3110 14 05
Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A35
