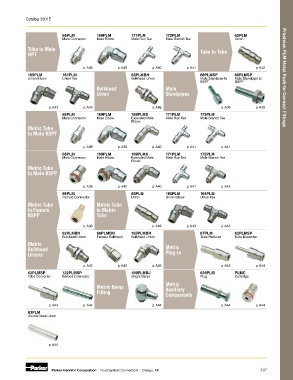

Page 63 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

68PLM 169PLM 171PLM 172PLM 62PLM
Male Connector Male Elbow Male Run Tee Male Branch Tee Union
Tube to Male
NPT Tube to Tube

p. A38 p. A39 p. A40 p. A41 p. A42
165PLM 164PLM 62PLMBH 68PLMSP 68PLMSP
Union Elbow Union Tee Bulkhead Union Male Standpipe to Male Standpipe to Prestolok PLM Metal Push-to-Connect Fittings
BSPT BSPP
Bulkhead Male
Union Standpipes

p. A43 p. A43 p. A42 p. A39 p. A39
68PLM 169PLM 169PLMX 171PLM 172PLM
Male Connector Male Elbow Extended Male Male Run Tee Male Branch Tee
Elbow
Metric Tube
to Male BSPT

p. A38 p. A39 p. A40 p. A41 p. A41
68PLM 169PLM 169PLMX 171PLM 172PLM
Male Connector Male Elbow Extended Male Male Run Tee Male Branch Tee
Elbow
Metric Tube
to Male BSPP

p. A38 p. A40 p. A40 p. A41 p. A42
66PLM 62PLM 165PLM 164PLM
Female Connector Union Union Elbow Union Tee
Metric Tube Metric Tube
to Female to Metric
BSPP Tube

p. A38 p. A42 p. A43 p. A43
62PLMBH 66PLMBH 165PLMBH 67PLM 62PLMSP
Bulkhead Union Female Bulkhead Bulkhead Union Tube Reducer Tube Expander
Metric
Bulkhead Metric
Unions Plug-in

p. A42 p. A42 p. A43 p. A43 p. A44
62PLMSP 122PLMSP 169PLMBJ 639PLM PLMC
Tube Converter Barbed Connector Single Banjo Plug Cartridge
Metric Banjo Metric
Fitting Auxiliary
Components

p. A44 p. A44 p. A44 p. A44 p. A44
63PLM
Double Male Union

p. A44
