Page 62 - Brass, Composite and Thermoplastic Fittings and Valves

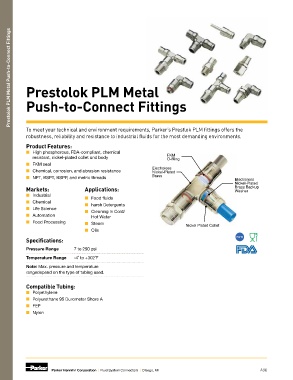

Prestolok PLM Metal Push-to-Connect Fittings

Prestolok PLM Metal

Push-to-Connect Fittings

To meet your technical and environment requirements, Parker’s Prestlok PLM fittings offers the
robustness, reliability and resistance to industrial fluids for the most demanding environments.

Product Features:
■ High phosphorous, FDA-compliant, chemical
resistant, nickel-plated collet and body FKM
O-Ring
■ FKM seal
Electroless
■ Chemical, corrosion, and abrasion resistance Nickel-Plated
■ NPT, BSPT, BSPP, and metric threads Brass Electroless
Nickel-Plated
Markets: Applications: Brass Backup
Washer
■ Industrial
■ Food fluids
■ Chemical
■ harsh Detergents
■ Life Science
■ Cleaning In Cold/
■ Automation Hot Water
■ Food Processing ■ Steam Nickel Plated Collet

■ Oils
Specifications:
Pressure Range 7 to 290 psi
Temperature Range -4˚ to +302˚F

Note: Max. pressure and temperature
rangedepend on the type of tubing used.

Compatible Tubing:
■ Polyethylene
■ Polyurethane 95 Durometer Shore A
■ FEP
■ Nylon

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A36
