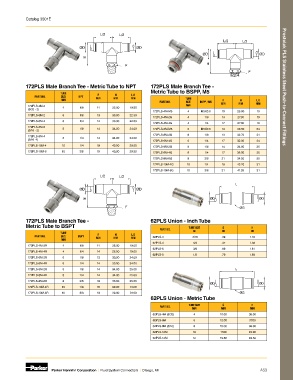

172PLS Male Branch Tee - Metric Tube to NPT 172PLS Male Branch Tee - Prestolok PLS Stainless Steel Push-to-Connect Fittings
Metric Tube to BSPP, M5
TUBE F H L/2
PART NO. SIZE NPT MM MM MM
MM TUBE F H L/2
PART NO. SIZE BSPP / M5 MM MM MM
172PLS-4M-2 4 1/8 11 22.00 19.50 MM
(5/32 - 2)
172PLS-4M-M5 4 M5X0.8 10 26.80 19
172PLS-6M-2 6 1/8 13 30.00 22.50
172PLS-4M-2G 4 1/8 13 27.30 19
172PLS-6M-4 6 1/4 14 30.00 22.50
172PLS-4M-4G 4 1/4 17 27.30 19
172PLS-8M-2 8 1/8 14 34.00 24.00
(5/16 - 2) 172PLS-6M-M5 6 M5X0.8 13 33.50 24
172PLS-8M-4 172PLS-6M-2G 6 1/8 13 32.70 24
(5/16 -4) 8 1/4 14 34.00 24.00 172PLS-6M-4G 6 1/4 17 32.00 24
172PLS-10M-4 10 1/4 19 40.00 29.50 172PLS-8M-2G 8 1/8 14 34.80 25
172PLS-10M-6 10 3/8 19 40.00 29.50 172PLS-8M-4G 8 1/4 17 35.00 25
172PLS-8M-6G 8 3/8 21 34.50 25
172PLS-10M-4G 10 1/4 18 43.20 31
172PLS-10M-6G 10 3/8 21 41.20 31
L/2 L/2

L
ØD ØD
H ØD ØD
F ØG

172PLS Male Branch Tee - 62PLS Union - Inch Tube
Metric Tube to BSPT
PART NO. TUBE SIZE G H
TUBE F H L/2 IN IN IN
PART NO. SIZE BSPT MM MM MM 62PLS-3 3/16 .39 1.18
MM
62PLS-4 1/4 .47 1.38
172PLS-4M-2R 4 1/8 11 25.00 19.00
62PLS-6 3/8 .69 1.81
172PLS-4M-4R 4 1/4 14 26.00 19.00
62PLS-8 1/2 .79 1.89
172PLS-6M-2R 6 1/8 13 30.00 24.00
172PLS-6M-4R 6 1/4 14 30.00 24.00
172PLS-8M-2R 8 1/8 14 34.00 25.00 L
172PLS-8M-4R 8 1/4 14 34.00 25.00
172PLS-8M-6R 8 3/8 19 33.00 25.00
ØD ØD
172PLS-10M-4R 10 1/4 19 39.00 31.00
172PLS-10M-6R 10 3/8 19 39.00 31.00 ØG
62PLS Union - Metric Tube
PART NO. TUBE SIZE G H
MM MM MM
62PLS-4M (5/32) 4 10.00 30.00
62PLS-6M 6 12.00 37.00
62PLS-8M (5/16) 8 15.00 38.00
62PLS-10M 10 17.00 49.00
62PLS-12M 12 19.50 49.50
