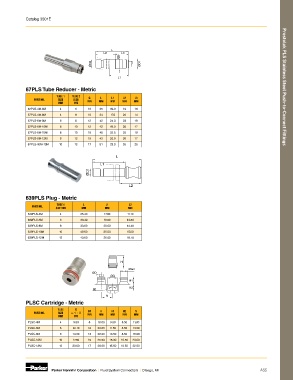

Page 81 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

67PLS Tube Reducer - Metric Prestolok PLS Stainless Steel Push-to-Connect Fittings

TUBE 1 TUBE 2 G L L1 L2 L3
PART NO. SIZE SIZE MM MM MM MM MM
MM MM
67PLS-4M-6M 4 6 10 35 19.0 19 16
67PLS-4M-8M 4 8 10 34 17.0 20 14
67PLS-6M-8M 6 8 12 42 24.0 23 19
67PLS-6M-10M 6 10 12 42 19.0 25 17
67PLS-8M-10M 8 10 15 45 22.5 25 19
67PLS-8M-12M 8 12 15 43 20.0 26 17
67PLS-10M-12M 10 12 17 51 23.0 26 25

639PLS Plug - Metric
PART NO. TUBE 1 L L1 L2
SIZE MM MM MM MM
639PLS-4M 4 25.40 17.00 11.10
639PLS-6M 6 30.40 19.50 13.50
639PLS-8M 8 33.00 20.00 14.40
639PLS-10M 10 40.00 25.00 17.00
639PLS-12M 12 43.00 26.00 18.70

H
ØG1
ØD
ØG
H1
60 H2
N
PLSC Cartridge - Metric
TUBE G
PART NO. SIZE + .1 - 0 G1 H H1 H2 N
MM MM MM MM MM MM MM
PLSC-4M 4 9.80 8 18.00 9.50 8.50 11.00
PLSC-6M 6 12.10 10 20.00 11.50 8.50 13.50
PLSC-8M 8 14.80 13 22.00 13.50 8.50 16.00
PLSC-10M 10 17.50 15 25.50 15.00 10.50 20.00
PLSC-12M 12 20.00 17 26.00 15.50 10.50 22.50

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A55
