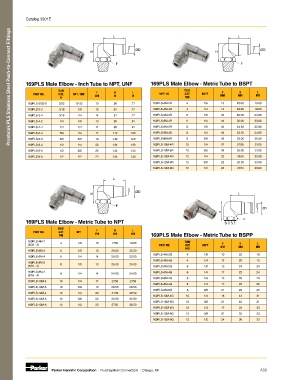

Page 76 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

Prestolok PLS Stainless Steel Push-to-Connect Fittings
L L

ØD ØD
H H

F F

169PLS Male Elbow - Inch Tube to NPT, UNF 169PLS Male Elbow - Metric Tube to BSPT
TUBE TUBE F H L
PART NO. SIZE NPT / UNF F H L PART NO. SIZE BSPT MM MM MM
IN MM IN IN MM
169PLS-5/32-0 5/32 10-32 10 .98 .77 169PLS-4M-2R 4 1/8 13 18.00 19.00
169PLS-3-2 3/16 1/8 10 .81 .77 169PLS-4M-4R 4 1/4 14 18.00 19.00
169PLS-3-4 3/16 1/4 14 .81 .77 169PLS-6M-2R 6 1/8 13 20.00 24.00
169PLS-4-2 1/4 1/8 13 .85 .91 169PLS-6M-4R 6 1/4 14 20.00 23.00
169PLS-4-4 1/4 1/4 14 .85 .91 169PLS-8M-2R 8 1/8 13 24.50 32.00
169PLS-6-4 3/8 1/4 17 1.12 1.20 169PLS-8M-4R 8 1/4 14 23.50 24.00
169PLS-6-6 3/8 3/8 19 1.12 1.20 169PLS-8M-6R 8 3/8 19 23.00 25.00
169PLS-8-4 1/2 1/4 22 1.34 1.30 169PLS-10M-4R 10 1/4 17 27.00 31.00
169PLS-8-6 1/2 3/8 22 1.34 1.30 169PLS-10M-6R 10 3/8 19 26.00 31.00
169PLS-8-8 1/2 1/2 22 1.34 1.30 169PLS-12M-4R 12 1/4 22 31.50 33.00
169PLS-12M-6R 12 3/8 22 32.50 33.00
169PLS-12M-8R 12 1/2 22 27.50 33.00

L

ØD
H L
F
ØD
H
169PLS Male Elbow - Metric Tube to NPT F
TUBE F H L
PART NO. SIZE NPT MM MM MM
MM 169PLS Male Elbow - Metric Tube to BSPP
169PLS-4M-2 TUBE
(5/32 - 2) 4 1/8 13 17.50 19.00 PART NO. SIZE BSPP F H L
MM MM MM MM
169PLS-6M-2 6 1/8 13 20.00 22.50
169PLS-4M-2G 4 1/8 10 22 19
169PLS-6M-4 6 1/4 14 20.00 22.50
169PLS-4M-4G 4 1/4 17 20 19
169PLS-8M-2
(5/16 - 2) 8 1/8 13 25.00 24.00 169PLS-6M-2G 6 1/8 13 24 24
169PLS-8M-4 8 1/4 14 24.00 24.00 169PLS-6M-4G 6 1/4 17 22 24
(5/16 - 4)
169PLS-8M-2G 8 1/8 13 25 25
169PLS-10M-4 10 1/4 17 27.50 27.50
169PLS-8M-4G 8 1/4 17 25 25
169PLS-10M-6 10 3/8 19 28.50 26.50
169PLS-8M-6G 8 3/8 21 23 25
169PLS-12M-4 12 1/4 22 31.50 32.50
169PLS-10M-4G 10 1/4 18 43 31
169PLS-12M-6 12 3/8 22 32.50 32.50
169PLS-10M-6G 10 3/8 21 40 31
169PLS-12M-8 12 1/2 22 27.50 32.50
169PLS-12M-4G 12 1/4 17 33 33
169PLS-12M-6G 12 3/8 21 33 33
169PLS-12M-8G 12 1/2 24 30 33

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A50
