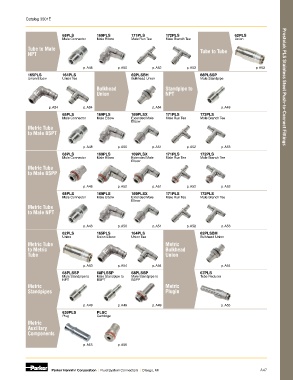

Page 73 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

68PLS 169PLS 171PLS 172PLS 62PLS
Male Connector Male Elbow Male Run Tee Male Branch Tee Union
Tube to Male Tube to Tube
NPT

p. A48 p. A50 p. A52 p. A53 p. A53
165PLS 164PLS 62PLSBH 68PLSSP
Union Elbow Union Tee Bulkhead Union Male Standpipe
Bulkhead Standpipe to Prestolok PLS Stainless Steel Push-to-Connect Fittings
Union NPT

p. A54 p. A54 p. A54 p. A49
68PLS 169PLS 169PLSX 171PLS 172PLS
Male Connector Male Elbow Extended Male Male Run Tee Male Branch Tee
Elbow
Metric Tube
to Male BSPT

p. A48 p. A50 p. A51 p. A52 p. A53
68PLS 169PLS 169PLSX 171PLS 172PLS
Male Connector Male Elbow Extended Male Male Run Tee Male Branch Tee
Elbow
Metric Tube
to Male BSPP

p. A48 p. A50 p. A51 p. A52 p. A53
68PLS 169PLS 169PLSX 171PLS 172PLS
Male Connector Male Elbow Extended Male Male Run Tee Male Branch Tee
Elbow
Metric Tube
to Male NPT

p. A48 p. A50 p. A51 p. A52 p. A53
62PLS 165PLS 164PLS 62PLSBH
Union Union Elbow Union Tee Bulkhead Union
Metric Tube Metric
to Metric Bulkhead
Tube Union

p. A53 p. A54 p. A54 p. A54
68PLSSP 68PLSSP 68PLSSP 67PLS
Male Standpipe to Male Standpipe to Male Standpipe to Tube Reducer
NPT BSPT BSPP
Metric Metric
Standpipes Plugin

p. A49 p. A49 p. A49 p. A55
639PLS PLSC
Plug Cartridge
Metric
Auxiliary
Components

p. A55 p. A55

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A47
