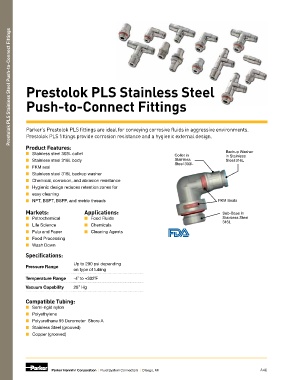

Page 72 - Brass, Composite and Thermoplastic Fittings and Valves

Prestolok PLS Stainless Steel Push-to-Connect Fittings

Prestolok PLS Stainless Steel

Push-to-Connect Fittings

Parker’s Prestolok PLS fittings are ideal for conveying corrosive fluids in aggressive environments.
Prestolok PLS fittings provide corrosion resistance and a hygienic external design.

Product Features:
■ Stainless steel 303L collet Collet in Backup Washer
in Stainless
■ Stainless steel 316L body Stainless Steel 316L
Steel 303L
■ FKM seal
■ Stainless steel 316L backup washer
■ Chemical, corrosion, and abrasion resistance
■ Hygienic design reduces retention zones for
■ easy cleaning
■ NPT, BSPT, BSPP, and metric threads FKM Seals
Markets: Applications: Sub-Base in
■ Petrochemical ■ Food Fluids Stainless Steel
316L
■ Life Science ■ Chemicals
■ Pulp and Paper ■ Cleaning Agents
■ Food Processing
■ Wash Down

Specifications:
Up to 290 psi depending
Pressure Range
on type of tubing
Temperature Range -4˚ to +302˚F
Vacuum Capability 28” Hg

Compatible Tubing:
■ Semi-rigid nylon
■ Polyethylene
■ Polyurethane 95 Durometer Shore A
■ Stainless Steel (grooved)
■ Copper (grooved)

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A46
