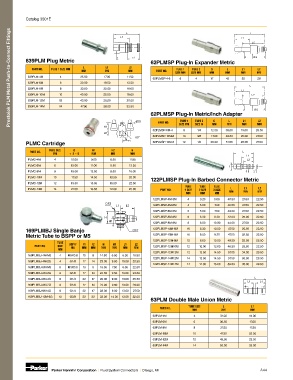

Page 70 - Brass, Composite and Thermoplastic Fittings and Valves
P. 70
Catalog 3501E
Prestolok PLM Metal Push-to-Connect Fittings
L
L1
L 2
2 Ø G 1
639PLM Plug Metric 62PLMSP Plug-In Expander Metric
PART NO. TUBE 1 SIZE MM L L1 L2 TUBE 1 TUBE 2 G L L1 L2
MM MM MM PART NO.
SIZE MM SIZE MM MM MM MM MM
639PLM-4M 4 25.50 17.00 11.50
62PLMSP-4-6 6 4 17 42 22 28
639PLM-6M 6 30.50 19.50 13.50
L
639PLM-8M 8 33.00 20.00 16.00
L1
639PLM-10M 10 40.00 25.00 18.00 L 2
639PLM-12M 12 43.00 26.00 20.00
639PLM-14M 14 47.00 28.00 22.50
1 Ø G 2
62PLMSP Plug-In Metric/Inch Adapter
TUBE 1 TUBE 2 G L L1 L2
PART NO. SIZE MM SIZE IN MM MM MM MM
62PLMSP-6M-4 6 1/4 12.50 38.00 19.00 20.50
62PLMSP-10M-6 10 3/8 17.00 49.50 25.00 27.00
PLMC Cartridge 62PLMSP-12M-8 12 1/2 20.00 51.00 26.00 27.50
TUBE SIZE G H1 H2 N
PART NO. MM + .1 - 0 MM MM MM
PLMC-4M 4 10.00 9.00 8.50 11.00
PLMC-6M 6 12.00 11.00 8.50 13.50
PLMC-8M 8 15.00 12.50 8.50 16.00
PLMC-10M 10 17.50 14.50 10.50 20.00 122PLMSP Plug-In Barbed Connector Metric
PLMC-12M 12 19.50 15.00 10.50 22.50
TUBE TUBE TUBE
PLMC-14M 14 21.50 16.50 12.00 25.00 PART NO. 1 SIZE 2 SIZE 3 SIZE L L1 L2
MM MM MM MM MM MM
122PLMSP-4M-3M 4 3.20 5.00 40.50 27.00 22.50
122PLMSP-4M-5M 4 5.00 7.00 40.50 27.00 22.50
122PLMSP-6M-5M 6 5.00 7.00 43.00 27.00 22.50
122PLMSP-8M-6M 8 6.30 8.30 42.00 25.00 22.50
122PLMSP-8M-8M 8 8.00 10.00 44.00 27.00 22.50
169PLMBJ Single Banjo 122PLMSP-10M-6M 10 6.30 10.00 47.50 25.50 22.50
Metric Tube to BSPP or M5 122PLMSP-10M-8M 10 8.00 8.30 47.50 25.50 22.50
122PLMSP-12M-8M 12 8.00 10.00 48.50 25.50 22.50
TUBE BSPP/ F1 F2 H H1 L1 L2
PART NO. SIZE M5 MM MM MM MM MM MM 122PLMSP-12M10M 12 10.00 12.00 48.50 25.50 22.50
MM
122PLMSP-12M12M 12 12.50 14.50 57.00 34.00 29.50
169PLMBJ-4M-M5 4 M5X0.8 10 8 14.50 6.50 6.00 18.50
122PLMSP-14M12M 14 12.50 14.50 57.50 33.00 29.50
169PLMBJ-4M-2G 4 G1/8 17 14 23.00 9.50 10.00 20.50
122PLMSP-14M14M 14 14.00 16.00 59.50 35.00 29.50
169PLMBJ-6M-M5 6 M5X0.8 10 8 15.00 7.00 6.00 22.50
169PLMBJ-6M-2G 6 G1/8 17 14 23.00 9.50 10.00 23.50
169PLMBJ-6M-4G 6 G1/4 22 17 22.00 9.00 13.00 25.50 L
L1 L1
169PLMBJ-8M-2G 8 G1/8 17 14 23.00 9.50 10.00 26.00
169PLMBJ-8M-4G 8 G1/4 22 17 22.00 9.00 13.00 27.50
169PLMBJ-10M-6G 10 G3/8 22 22 33.00 14.00 13.00 32.00
63PLM Double Male Union Metric
PART NO. TUBE SIZE L L1
MM MM MM
63PLM-4M 4 31.00 14.00
63PLM-6M 6 36.50 17.00
63PLM-8M 8 37.50 17.50
63PLM-10M 10 47.50 22.50
63PLM-12M 12 49.50 23.50
63PLM-14M 14 53.00 25.00
Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI A44
