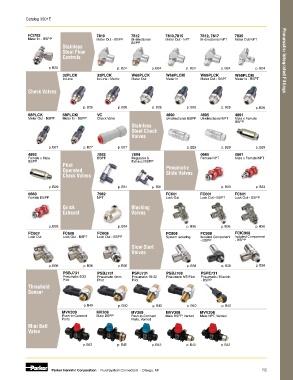

Page 89 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

FCI702 7810 7812 7810,7815 7812, 7817 7835
Meter In - BSPP Meter Out - BSPP Bi-directional Meter Out - NPT Bi-directional NPT Meter Out NPT
BSPP
Stainless
Steel Flow
Controls Pneumatic: Integrated Fittings

p. B22 p. B24 p. B24 p. B24 p. B24 p. B24
32PLCK 32PLCK W68PLCK W68PLCKI W68PLCK W68PLCKI
In-Line In-Line - Metric Meter Out Meter In Meter Out - BSPT Meter In - BSPT

Check Valves

p. B26 p. B26 p. B26 p. B26 p. B26 p. B26
68PLCK 68PLCKI VC 4890 4895 4891
Meter Out - BSPP Meter In - BSPP Check Valve Unidirectional BSPP Unidirectional NPT Male x Female
BSPP
Stainless
Steel Check
Valves

p. B27 p. B27 p. B27 p. B29 p. B29 p. B29
4892 7892 7894 0660 0661
Female x Male BSPP Regulator & Female NPT Male x Female NPT
BSPP Exhaust BSPP
Pilot Pneumatic
Operated Slide Valves
Check Valves

p. B29 p. B31 p. B31 p. B33 p. B33
0669 7982 FC601 FC601 FC601
Female BSPP NPT Lock Out Lock Out - BSPT Lock Out - BSPP
Quick Blocking
Exhaust Valves

p. B33 p. B34 p. B36 p. B36 p. B36
FC602 FC608 FC608 FC908 FC908 FCIC908
Lock Out Lock Out - BSPT Lock Out - BSPP System Isolating Isolated Component Isolated Component
- BSPP - BSPP
Slow Start
Valves

p. B36 p. B36 p. B36 p. B38 p. B38 p. B38
PSBJ731 PSBJ731 PSPJ731 PSBJ708 PSPE731
Pneumatic 5/32 Pneumatic 4mm Pneumatic 10-32 Pneumatic M5 Pilot Pneumatic / Electric
Pilot Pilot Pilot - BSPP
Threshold
Sensor

p. B40 p. B40 p. B40 p. B40 p. B40
MVV309 MV308 MV309 MVV308 MVV308
Push-to-Connect Male BSPP Push-to-Connect Male BSPP, Vented Male NPT, Vented
Ports Ports, Vented
Mini Ball
Valve

p. B42 p. B42 p. B42 p. B42 p. B42

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B5
