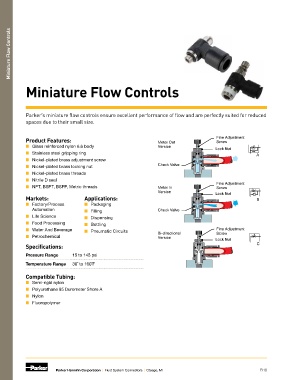

Miniature Flow Controls

Miniature Flow Controls

Parker’s miniature flow controls ensure excellent performance of flow and are perfectly suited for reduced
spaces due to their small size.

Product Features: Meter Out Fine Adjustment
Screw
■ Glass reinforced nylon 6.6 body Version
Lock Nut
■ Stainless steel gripping ring A
■ Nickel-plated brass adjustment screw
■ Nickel-plated brass locking nut Check Valve
■ Nickel-plated brass threads
■ Nitrile D seal
Fine Adjustment
■ NPT, BSPT, BSPP, Metric threads Meter In Screw
Version Lock Nut
Markets: Applications: B
■ Factory/Process ■ Packaging
Automation ■ Filling Check Valve
■ Life Science ■ Dispensing
■ Food Processing ■ Bottling
■ Water And Beverage ■ Pneumatic Circuits Bi-directional Fine Adjustment
Screw
■ Petrochemical Version Lock Nut
Specifications: C

Pressure Range 15 to 145 psi
Temperature Range 30˚ to 160˚F

Compatible Tubing:
■ Semi-rigid nylon
■ Polyurethane 95 Durometer Shore A
■ Nylon
■ Fluoropolymer

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B10
