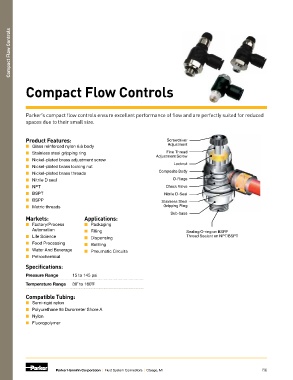

Page 90 - Brass, Composite and Thermoplastic Fittings and Valves

Compact Flow Controls

Compact Flow Controls

Parker’s compact flow controls ensure excellent performance of flow and are perfectly suited for reduced
spaces due to their small size.

Product Features: Screwdriver
■ Glass reinforced nylon 6.6 body Adjustment
■ Stainless steel gripping ring Fine Thread
Adjustment Screw
■ Nickel-plated brass adjustment screw
Locknut
■ Nickel-plated brass locking nut
■ Nickel-plated brass threads Composite Body
■ Nitrile D seal O-Rings
■ NPT Check Valve
■ BSPT Nitrile D-Seal
■ BSPP Stainless Steel
■ Metric threads Gripping Ring
Sub-base
Markets: Applications:
■ Factory/Process ■ Packaging
Automation ■ Filling Sealing O-ring on BSPP
■ Life Science ■ Dispensing Thread Sealant on NPT/BSPT
■ Food Processing ■ Bottling
■ Water And Beverage ■ Pneumatic Circuits
■ Petrochemical
Specifications:

Pressure Range 15 to 145 psi
Temperature Range 30˚ to 160˚F

Compatible Tubing:
■ Semi-rigid nylon
■ Polyurethane 95 Durometer Shore A
■ Nylon
■ Fluoropolymer

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B6
