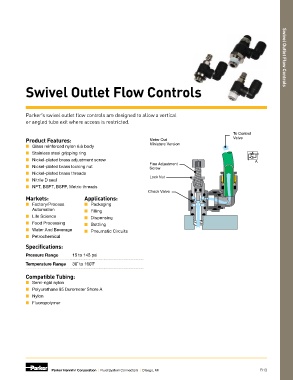

Swivel Outlet Flow Controls Swivel Outlet Flow Controls

Parker’s swivel outlet flow controls are designed to allow a vertical
or angled tube exit where access is restricted.

To Control
Product Features: Meter Out Valve
■ Glass reinforced nylon 6.6 body Miniature Version
■ Stainless steel gripping ring
■ Nickel-plated brass adjustment screw A
Fine Adjustment
■ Nickel-plated brass locking nut Screw
■ Nickel-plated brass threads
Lock Nut
■ Nitrile D seal
■ NPT, BSPT, BSPP, Metric threads
Check Valve
Markets: Applications:
■ Factory/Process ■ Packaging
Automation ■ Filling
■ Life Science ■ Dispensing
■ Food Processing ■ Bottling
■ Water And Beverage ■ Pneumatic Circuits
■ Petrochemical
Specifications:

Pressure Range 15 to 145 psi
Temperature Range 30˚ to 160˚F

Compatible Tubing:
■ Semi-rigid nylon
■ Polyurethane 95 Durometer Shore A
■ Nylon
■ Fluoropolymer

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B13
