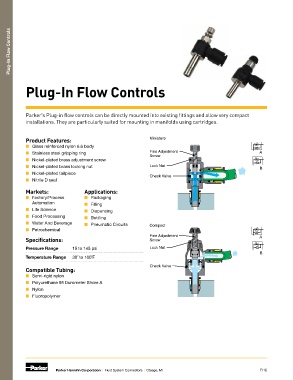

Plug-In Flow Controls
Plug-In Flow Controls
Parker’s Plug-in flow controls can be directly mounted into existing fittings and allow very compact
installations. They are particularly suited for mounting in manifolds using cartridges.
Product Features: Miniature
■ Glass reinforced nylon 6.6 body
■ Stainless steel gripping ring Fine Adjustment A
Screw
■ Nickel-plated brass adjustment screw
■ Nickel-plated brass locking nut Lock Nut B
■ Nickel-plated tailpiece
Check Valve
■ Nitrile D seal
Markets: Applications:
■ Factory/Process ■ Packaging
Automation ■ Filling
■ Life Science ■ Dispensing
■ Food Processing ■ Bottling
■ Water And Beverage ■ Pneumatic Circuits Compact
■ Petrochemical
Fine Adjustment A
Specifications: Screw
Pressure Range 15 to 145 psi Lock Nut
B
Temperature Range 30˚ to 160˚F
Check Valve
Compatible Tubing:
■ Semi-rigid nylon
■ Polyurethane 95 Durometer Shore A
■ Nylon
■ Fluoropolymer
Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B16
