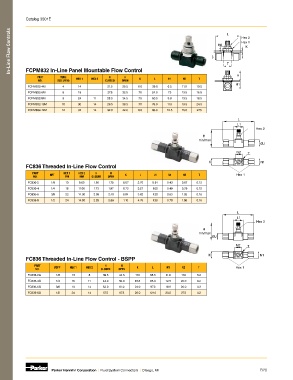

Page 104 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E L

In-Line Flow Controls H2 T Hex 2

Hex 1
K

FCPM832 In-Line Panel Mountable Flow Control
PART TUBE HEX 1 HEX 2 H H K L H1 H2 T H
NO. SIZE (MM) CLOSED OPEN
H1
FCPM832-4M 4 14 21.5 25.5 6.0 39.0 6.5 11.0 10.5
FCPM832-6M 6 19 27.5 32.5 7.0 54.0 7.5 13.5 16.5
FCPM832-8M 8 24 11 28.5 34.5 7.0 60.5 9.0 13.5 18.5
FCPM832-10M 10 30 14 29.5 38.5 7.0 76.0 11.5 13.5 24.5
FCPM832-12M 12 32 14 32.0 42.0 8.0 86.0 12.5 15.5 27.5
L
L1
Hex 2
H
min/max
ØJ
N2 T

K N1
FC836 Threaded In-Line Flow Control
PART HEX 1 HEX 2 H H Hex 1
NO. NPT MM MM CLOSED OPEN K L L1 N1 N2 T
FC836-2 1/8 13 8.00 1.56 1.75 0.67 2.70 0.91 0.43 0.67 0.12
FC836-4 1/4 16 11.00 1.73 1.97 0.73 3.27 1.02 0.49 0.79 0.12
FC836-6 3/8 22 14.00 2.05 2.40 0.94 3.82 1.30 0.63 1.02 0.16
FC836-8 1/2 24 14.00 2.26 2.66 1.10 4.76 1.38 0.79 1.08 0.16

L
L1
Hex 2
H
min/max
ØJ
N2 T

K N1
FC836 Threaded In-Line Flow Control - BSPP
PART BSPP HEX 1 HEX 2 H H K L N1 N2 T
NO. CLOSED OPEN Hex 1
FC836-2G 1/8 13 8 39.5 44.5 17.0 68.5 11.0 17.0 3.2
FC836-4G 1/4 16 11 44.0 50.0 18.5 83.0 12.5 20.0 3.2
FC836-6G 3/8 19 14 52.0 61.0 24.0 97.0 16.0 26.0 4.2
FC836-8G 1/2 24 14 57.5 67.5 28.0 121.0 20.0 27.5 4.2

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B20
