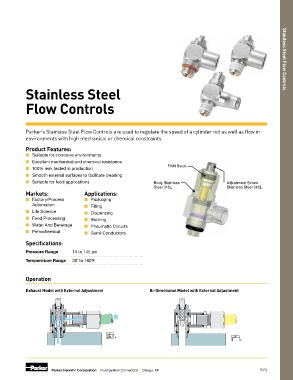

Page 107 - Brass, Composite and Thermoplastic Fittings and Valves

Stainless Steel Stainless Steel Flow Controls

Flow Controls

Parker’s Stainless Steel Flow Controls are used to regulate the speed of a cylinder rod as well as flow in
environments with high mechanical or chemical constraints.

Product Features:
■ Suitable for corrosive environments
■ Excellent mechanical and chemical resistance
FKM Seals
■ 100% leak tested in production
■ Smooth external surfaces to facilitate cleaning
■ Suitable for food applications Body Stainless Adjustment Screw
Steel 316L Stainless Steel 316L
Markets: Applications:
■ Factory/Process ■ Packaging
Automation ■ Filling
■ Life Science ■ Dispensing
■ Food Processing ■ Bottling,
■ Water And Beverage ■ Pneumatic Circuits
■ Petrochemical ■ Semi-Conductors
Specifications:

Pressure Range 15 to 145 psi
Temperature Range 30˚ to 160˚F

Operation

Exhaust Model with External Adjustment Bi-Directional Model with External Adjustment

C
B

A
C

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B23
