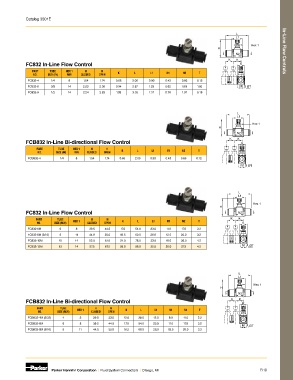

Page 103 - Brass, Composite and Thermoplastic Fittings and Valves

Catalog 3501E

L
L1
Hex 1
H
N2 In-Line Flow Controls
K K
FC832 In-Line Flow Control K
PART TUBE HEX 1 H H K L L1 N1 N2 T
NO. SIZE (IN) MM CLOSED OPEN
FC832-4 1/4 8 1.54 1.74 0.66 2.00 0.90 0.43 0.66 0.12
FC832-6 3/8 14 2.03 2.38 0.94 2.87 1.29 0.62 1.01 1.60 N1 ØT
FC832-8 1/2 14 2.24 2.63 1.09 3.35 1.37 0.78 1.07 0.16

L
L1
Hex 1
H
N2
K K
FCB832 In-Line Bi-directional Flow Control K
PART TUBE HEX 1 H H K L L1 N1 N2 T
NO. SIZE (IN) MM CLOSED OPEN
FCB832-4 1/4 8 1.54 1.74 0.66 2.00 0.90 0.43 0.66 0.12
N1 ØT

L
L1
Hex 1
H
FC832 In-Line Flow Control N2
PART TUBE HEX 1 H H K L L1 N1 N2 T K K
NO. SIZE (MM) CLOSED OPEN K
FC832-6M 6 8 39.5 44.5 17.0 54.0 23.0 11.0 17.0 3.2
FC832-8M (5/16) 8 11 44.0 50.0 18.5 60.5 26.0 12.5 20.0 3.2
FC832-10M 10 14 52.0 61.0 24.0 76.0 33.0 16.0 26.0 4.2
FC832-12M 12 14 57.5 67.5 28.0 86.0 35.0 20.0 27.5 4.2 N1 ØT

L
L1
Hex 1
H
N2
FCB832 In-Line Bi-directional Flow Control K K K
PART TUBE HEX 1 H H K L L1 N1 N2 T
NO. SIZE (MM) CLOSED OPEN
FCB832-4M (5/32) 4 5 29.5 33.5 12.0 39.0 15.0 8.0 11.0 2.2
FCB832-6M 6 8 39.5 44.5 17.0 54.0 23.0 11.0 17.0 3.2
N1 ØT
FCB832-8M (5/16) 8 11 44.0 50.0 18.5 60.5 26.0 12.5 20.0 3.2

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B19
