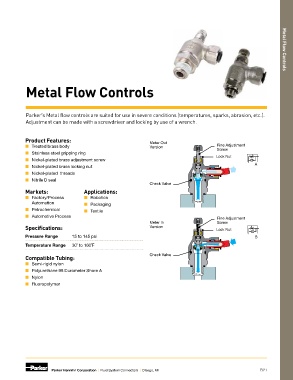

Page 105 - Brass, Composite and Thermoplastic Fittings and Valves

Metal Flow Controls Metal Flow Controls

Parker’s Metal flow controls are suited for use in severe conditions (temperatures, sparks, abrasion, etc.).
Adjustment can be made with a screwdriver and locking by use of a wrench.

Product Features: Meter Out
■ Treated brass body Version Fine Adjustment
Screw
■ Stainless steel gripping ring
Lock Nut
■ Nickel-plated brass adjustment screw
A
■ Nickel-plated brass locking nut
■ Nickel-plated threads
■ Nitrile D seal
Check Valve
Markets: Applications:
■ Factory/Process ■ Robotics
Automation ■ Packaging
■ Petrochemical ■ Textile
■ Automotive Process Fine Adjustment
Meter In Screw
Specifications: Version Lock Nut

Pressure Range 15 to 145 psi B
Temperature Range 30˚ to 160˚F

Compatible Tubing: Check Valve
■ Semi-rigid nylon
■ Polyurethane 95 Durometer Shore A
■ Nylon
■ Fluoropolymer

Parker Hannifin Corporation | Fluid System Connectors | Otsego, MI B21
