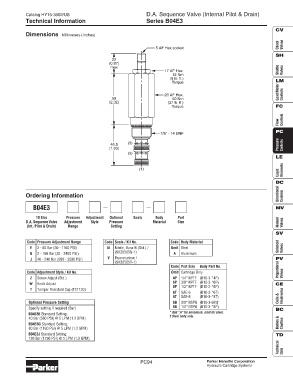

Page 96 - Parker - Pressure Control Valves

Catalog HY15-3502/US D.A. Sequence Valve (Internal Pilot & Drain)
Technical Information Series B04E3

CV
Dimensions Millimeters (Inches)
Check Valves
5 AF Hex socket
SH
22
(0.87)
max
17 AF Hex. Shuttle Valves
12 Nm
(9 lb. ft.)
Torque LM
Load/Motor
26 AF Hex. Controls
59 50 Nm
(2.32) (37 lb. ft.)
Torque FC

Flow Controls

PC
7/8" - 14 UNF
(3)
46.5 Pressure Controls
(1.83)
(2)
LE

(1) Elements
Logic

DC
Directional
Ordering Information Controls

B04E3 MV

10 Size Pressure Adjustment Optional Seals Body Port
D.A. Sequence Valve Adjustment Style Pressure Material Size Manual Valves
(Int. Pilot & Drain) Range Setting
SV
Code Pressure Adjustment Range Code Seals / Kit No. Code Body Material
E 2 - 80 Bar (30 - 1160 PSI) N Nitrile, Buna-N (Std.) / Omit Steel Solenoid Valves
G 2 - 166 Bar (30 - 2400 PSI) (SK30505N-1) A Aluminum
J 40 - 240 Bar (580 - 3500 PSI) V Fluorocarbon / PV
(SK30505V-1)
Code Port Size Body Part No.
Code Adjustment Style / Kit No. Omit Cartridge Only Proportional Valves
Z Screw Adjust (Std.) 4P 1/4″ NPTF (B10-3-*4P)
W Knob Adjust 6P 3/8″ NPTF (B10-3-*6P) CE
8P 1/2″ NPTF (B10-3-*8P)
T Tamper Resistant Cap (TC1130)
6T SAE-6 (B10-3-*6T)
8T SAE-8 (B10-3-*8T) Coils & Electronics
Optional Pressure Setting 6B 3/8″ BSPG (B10-3-6B)†
Specify setting if required (Bar) 8B 1/2″ BSPG (B10-3-*8P) BC
* Add “A” for aluminum, omit for steel.
B04E3E Standard Setting: † Steel body only.
40 Bar (580 PSI) @ 5 LPM (1.3 GPM)
B04E3G Standard Setting: Bodies & Cavities
80 Bar (1160 PSI) @ 5 LPM (1.3 GPM)
B04E3J Standard Setting: TD
120 Bar (1750 PSI) @ 5 LPM (1.3 GPM)
Technical Data

PC94 Parker Hannifin Corporation
Hydraulic Cartridge Systems
