P. 7

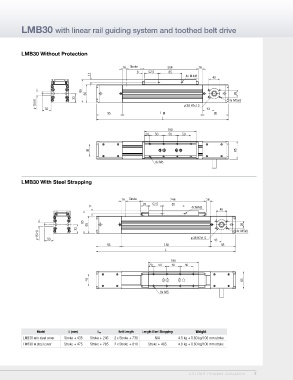

LMB30 with linear rail guiding system and toothed belt drive
LMB30 Without Protection
16 Stroke 206 16
8 52,5 85
11 4x M4x8 40
85
65 26
33 4x M5x8
ø 15 h9 33 ø 38 H7x1.5 43
95 L M 95
L
190
20 50 50 50
46 65
8x M5
LMB30 With Steel Strapping
16 Stroke 246 16
28 52,5 85
11 4x M4x8
40
85
65 26
33 4x M5x8
ø 15 h9 33 ø 38 H7x1.5 43
95 L M 95
L
190
20 50 50 50
46 65
8x M5
Model L (mm) L m Belt Length Length Steel Strapping Weight
LMB30 w/o steel cover Stroke + 435 Stroke + 245 2 x Stroke + 730 N/A 4.5 kg + 0.60 kg/100 mm stroke
LMB30 w steel cover Stroke + 475 Stroke + 285 2 x Stroke + 810 Stroke + 465 4.8 kg + 0.60 kg/100 mm stroke
EXTRAK Rodless Actuators 7
