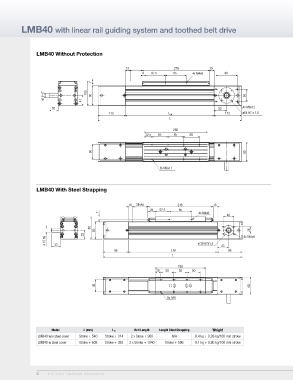

LMB40 with linear rail guiding system and toothed belt drive

LMB40 Without Protection

19 276 19
8 87.5 85 4x M4x8 88

7

ø19 h7 100 80 50
41
35 52 4x M6x12
113 L M 113 ø64 H7 x 1,5
L

260
32.5 65 65 65

60 80

8x M6x11

LMB40 With Steel Strapping

16 Stroke 246 16
28 52,5 85
11 4x M4x8
40

85
65 26
33 4x M5x8
ø 15 h9 33 ø 38 H7x1.5 43

95 L M 95
L

190
20 50 50 50

46 65

8x M5

Model L (mm) L m Belt Length Length Steel Strapping Weight
LMB40 w/o steel cover Stroke + 540 Stroke + 314 2 x Stoke + 900 N/A 8.4 kg + 0.93 kg/100 mm stroke
LMB40 w steel cover Stroke + 608 Stroke + 382 2 x Stroke + 1040 Stroke + 596 9.1 kg + 0.95 kg/100 mm stroke

8 EXTRAK Rodless Actuators
