Page 9 - Exlar - EXTRAK Modular rodless belt-driven actuators
P. 9

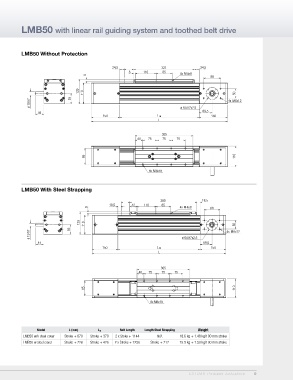

LMB50 with linear rail guiding system and toothed belt drive
LMB50 Without Protection
24,5 321 24,5
8 110 85 4x M4x8
9
88
129 110 50
ø 19 h7 55 ø 64 H7x2.5 4x M6x12
44 69,5
150 L M 150
L
305
40 75 75 75
85 110
8x M8x18
LMB50 With Steel Strapping
389 18,5
18,5 42 110 85
9 4x M4x8 88
129 110 50
55 4x M6x12
ø 19 h7 ø 64 H7x2.5
44 69,5
150 L M 150
L
305
40 75 75 75
85 110
8x M8x18
Model L (mm) L m Belt Length Length Steel Strapping Weight
LMB50 w/o steel cover Stroke + 670 Stroke + 370 2 x Stoke + 1144 N/A 18.6 kg + 1.48 kg/100 mm stroke
LMB50 w steel cover Stroke + 726 Stroke + 426 2 x Stroke + 1256 Stroke + 712 19.5 kg + 1.50 kg/100 mm stroke
EXTRAK Rodless Actuators 9
