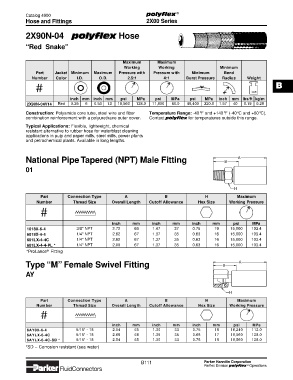

Catalog 4900 polyflex ®
Hose and Fittings 2X00 Series

2X90N-04 polyflex Hose

“Red Snake”

Maximum Maximum
Working Working Minimum
Part Jacket Minimum Maximum Pressure with Pressure with Minimum Bend
Number Color I.D. O.D. 2.5:1 4:1 Burst Pressure Radius Weight
B

inch mm inch mm psi MPa psi MPa psi MPa inch mm lbs/ft kg/m
2X90N-04V14 Red 0.25 6 0.53 13 18,560 128.0 11,600 80.0 46,400 320.0 1.57 40 0.19 0.28

Construction: Polyamide core tube, steel wire and fiber Temperature Range: -40°F and +140°F (-40°C and +60°C).
combination reinforcement with a polyurethane outer cover. Contact polyflex for temperatures outside this range.
Typical Applications: Flexible, lightweight, chemical
resistant alternative to rubber hose for waterblast cleaning
applications in pulp and paper mills, steel mills, power plants
and petrochemical plants. Available in long lengths.

National Pipe Tapered (NPT) Male Fitting B A

01

H
Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
1018X-6-4 3/8" NPT 2.72 69 1.47 37 0.75 19 15,000 103.4
6018X-4-4 1/4" NPT 2.62 67 1.37 35 0.63 16 15,000 103.4
601LX-4-4C 1/4" NPT 2.62 67 1.37 35 0.63 16 15,000 103.4
601LX-4-4-PL * 1/4" NPT 2.00 67 1.37 35 0.63 16 15,000 103.4
®
*ProLance Fitting
Type “M” Female Swivel Fitting B A
AY

H
Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
6AY8X-6-4 9/16" - 18 2.54 65 1.30 33 0.75 19 16,240 112.0
6AYLX-6-4C 9/16" - 18 2.69 68 1.39 35 0.68 17 18,560 128.0
6AYLX-6-4C-SD * 9/16" - 18 2.54 65 1.30 33 0.75 19 18,560 128.0
*SD – Corrosion resistant (sea water)
