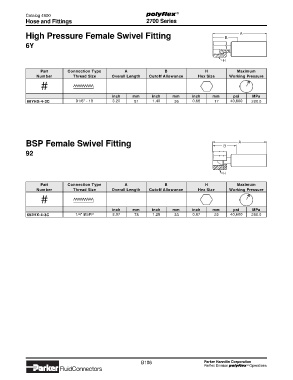

polyflex ®
Catalog 4900
Hose and Fittings 2700 Series

High Pressure Female Swivel Fitting B A

6Y

H

Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
66YHX-4-3C 91/6" - 18 3.20 81 1.40 36 0.68 17 40,600 280.0

BSP Female Swivel Fitting B A

92

H

Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
692HX-4-3C 1/4" BSPP 3.07 78 1.28 33 0.87 22 40,600 280.0

B106 Parker Hannifin Corporation
Parflex Division polyflex Operations
®
FluidConnectors
