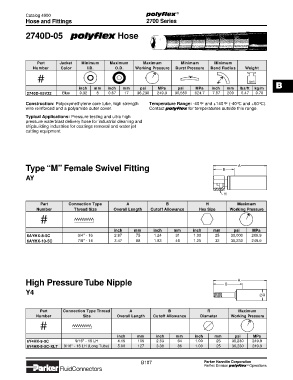

Catalog 4900 polyflex ®
Hose and Fittings 2700 Series

2740D-05 polyflex Hose

Part Jacket Minimum Maximum Maximum Minimum Minimum
Number Color I.D. O.D. Working Pressure Burst Pressure Bend Radius Weight

B
inch mm inch mm psi MPa psi MPa inch mm lbs/ft kg/m
2740D-05V32 Blue 0.32 8 0.67 17 36,230 249.9 90,580 624.7 7.87 200 0.47 0.70

Construction: Polyoxymethylene core tube, high strength Temperature Range: -40°F and +140°F (-40°C and +60°C).
wire reinforced and a polyamide outer cover. Contact polyflex for temperatures outside this range.
Typical Applications: Pressure testing and ultra high
pressure waterblast delivery hose for industrial cleaning and
shipbuilding industries for coatings removal and water jet
cutting equipment.

Type “M” Female Swivel Fitting B A

AY

H
Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
6AYHX-8-5C 3/4" - 16 2.97 75 1.24 31 1.00 25 30,000 206.9
6AYHX-10-5C 7/8" - 14 3.47 88 1.83 46 1.25 32 36,230 249.9

High Pressure Tube Nipple B A

Y4
ØR

Part Connection Type Thread A B R Maximum
Number Size Overall Length Cutoff Allowance Diameter Working Pressure

inch mm inch mm inch mm psi MPa
6Y4HX-9-5C 9/16" - 18 LH 4.15 105 2.53 64 1.00 25 36,230 249.9
6Y4HX-9-5C-XLT 9/16" - 18 LH (Long Tube) 5.00 127 3.38 86 1.00 25 36,230 249.9

B107 Parker Hannifin Corporation
Parflex Division polyflex Operations
®
FluidConnectors
