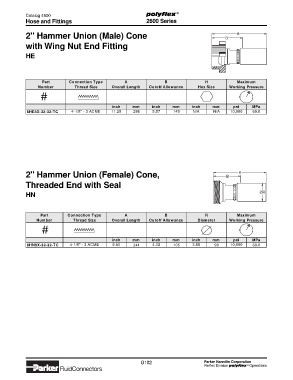

polyflex ®
Catalog 4900
Hose and Fittings 2600 Series

2" Hammer Union (Male) Cone B A

with Wing Nut End Fitting
HE

Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
6HE5X-32-32-TC 4-1/8" - 3 ACME 11.25 286 5.87 149 N/A N/A 10,000 69.0

2" Hammer Union (Female) Cone, B A

Threaded End with Seal
ØR
HN

Part Connection Type A B R Maximum
Number Thread Size Overall Length Cutoff Allowance Diameter Working Pressure

inch mm inch mm inch mm psi MPa
6HN5X-32-32-TC 4-1/8" - 3 ACME 9.50 241 4.12 105 3.88 98 10,000 69.0
