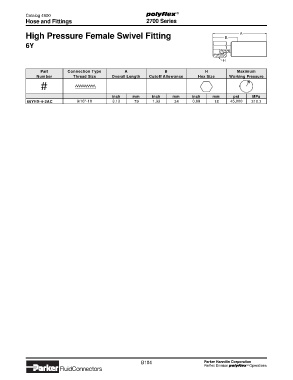

Page 123 - Parker - Polyflex Hose Products (Ultra High Pressure Thermoplastic Hose)

polyflex ®
Catalog 4900
Hose and Fittings 2700 Series

High Pressure Female Swivel Fitting B A

6Y

H

Part Connection Type A B H Maximum
Number Thread Size Overall Length Cutoff Allowance Hex Size Working Pressure

inch mm inch mm inch mm psi MPa
66YHX-4-2AC 9/16"-18 3.13 79 1.33 34 0.69 18 45,000 310.3

B104 Parker Hannifin Corporation
Parflex Division polyflex Operations
®
FluidConnectors
