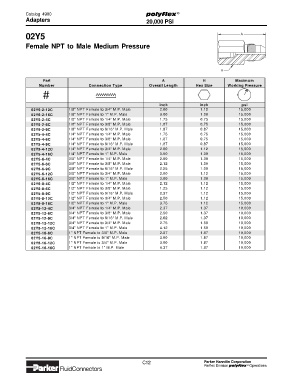

Page 161 - Parker - Polyflex Hose Products (Ultra High Pressure Thermoplastic Hose)

Catalog 4900 polyflex ®
Adapters 20,000 PSI

02Y5 A

Female NPT to Male Medium Pressure

H

Part A H Maximum
Number Connection Type Overall Length Hex Size Working Pressure

inch inch psi
02Y5-2-12C 1/8" NPT Female to 3/4" M.P. Male 2.00 1.12 15,000
02Y5-2-16C 1/8" NPT Female to 1" M.P. Male 3.00 1.00 15,000
02Y5-2-4C 1/8" NPT Female to 1/4" M.P. Male 1.75 0.75 15,000
02Y5-2-6C 1/8" NPT Female to 3/8" M.P. Male 1.87 0.75 15,000
02Y5-2-9C 1/8" NPT Female to 9/16" M.P. Male 1.87 0.87 15,000
02Y5-4-4C 1/4" NPT Female to 1/4" M.P. Male 1.75 0.75 15,000
02Y5-4-6C 1/4" NPT Female to 3/8" M.P. Male 1.87 0.75 15,000
02Y5-4-9C 1/4" NPT Female to 9/16" M.P. Male 1.87 0.87 15,000
02Y5-4-12C 1/4" NPT Female to 3/4" M.P. Male 2.00 1.12 15,000
02Y5-4-16C 1/4" NPT Female to 1" M.P. Male 3.00 1.00 15,000
02Y5-6-4C 3/8" NPT Female to 1/4" M.P. Male 2.00 1.00 15,000
02Y5-6-6C 3/8" NPT Female to 3/8" M.P. Male 2.12 1.00 15,000
02Y5-6-9C 3/8" NPT Female to 9/16" M.P. Male 2.25 1.00 15,000
02Y5-6-12C 3/8" NPT Female to 3/4" M.P. Male 2.00 1.12 15,000
02Y5-6-16C 3/8" NPT Female to 1" M.P. Male 3.00 1.00 15,000
02Y5-8-4C 1/2" NPT Female to 1/4" M.P. Male 2.12 1.12 15,000
02Y5-8-6C 1/2" NPT Female to 3/8" M.P. Male 1.25 1.12 15,000
02Y5-8-9C 1/2" NPT Female to 9/16" M.P. Male 2.37 1.12 15,000
02Y5-8-12C 1/2" NPT Female to 3/4" M.P. Male 2.50 1.12 15,000
02Y5-8-16C 1/2" NPT Female to 1" M.P. Male 3.75 1.12 15,000
02Y5-12-4C 3/4" NPT Female to 1/4" M.P. Male 2.37 1.37 10,000
02Y5-12-6C 3/4" NPT Female to 3/8" M.P. Male 2.50 1.37 10,000
02Y5-12-9C 3/4" NPT Female to 9/16" M.P. Male 2.62 1.37 10,000
02Y5-12-12C 3/4" NPT Female to 3/4" M.P. Male 2.75 1.50 10,000
02Y5-12-16C 3/4" NPT Female to 1" M.P. Male 4.12 1.50 10,000
02Y5-16-6C 1" NPT Female to 3/8" M.P. Male 2.87 1.87 10,000
02Y5-16-9C 1" NPT Female to 9/16" M.P. Male 3.00 1.87 10,000
02Y5-16-12C 1" NPT Female to 3/4" M.P. Male 3.00 1.87 10,000
02Y5-16-16C 1" NPT Female to 1" M.P. Male 4.37 1.87 10,000
