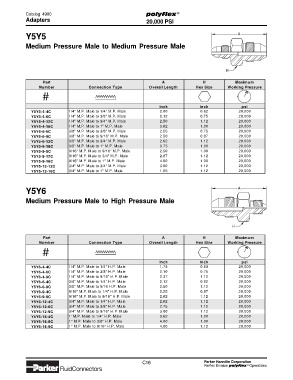

Page 165 - Parker - Polyflex Hose Products (Ultra High Pressure Thermoplastic Hose)

Catalog 4900 polyflex ®
Adapters 20,000 PSI

Y5Y5 A

Medium Pressure Male to Medium Pressure Male

H

Part A H Maximum
Number Connection Type Overall Length Hex Size Working Pressure

inch inch psi
Y5Y5-4-4C 1/4" M.P. Male to 1/4" M.P. Male 2.00 0.62 20,000
Y5Y5-4-6C 1/4" M.P. Male to 3/8" M.P. Male 2.12 0.75 20,000
Y5Y5-4-12C 1/4" M.P. Male to 3/4" M.P. Male 2.50 1.12 20,000
Y5Y5-4-16C 1/4" M.P. Male to 1" M.P. Male 3.62 1.00 20,000
Y5Y5-6-6C 3/8" M.P. Male to 3/8" M.P. Male 2.25 0.75 20,000
Y5Y5-6-9C 3/8" M.P. Male to 9/16" M.P. Male 2.50 0.87 20,000
Y5Y5-6-12C 3/8" M.P. Male to 3/4" M.P. Male 2.62 1.12 20,000
Y5Y5-6-16C 3/8" M.P. Male to 1" M.P. Male 3.75 1.00 20,000
Y5Y5-9-9C 9/16" M.P. Male to 9/16" M.P. Male 2.50 1.00 20,000
Y5Y5-9-12C 9/16" M.P. Male to 3/4" M.P. Male 2.87 1.12 20,000
Y5Y5-9-16C 9/16" M.P. Male to 1" M.P. Male 4.00 1.00 20,000
Y5Y5-12-12C 3/4" M.P. Male to 3/4" M.P. Male 3.00 1.12 20,000
Y5Y5-12-16C 3/4" M.P. Male to 1" M.P. Male 1.25 1.12 20,000

Y5Y6 A

Medium Pressure Male to High Pressure Male

H

Part A H Maximum
Number Connection Type Overall Length Hex Size Working Pressure

inch inch psi
Y5Y6-4-4C 1/4" M.P. Male to 1/4" H.P. Male 1.73 0.63 20,000
Y5Y6-4-6C 1/4" M.P. Male to 3/8" H.P. Male 2.10 0.75 20,000
Y5Y6-4-9C 1/4" M.P. Male to 9/16" H.P. Male 2.37 1.12 20,000
Y5Y6-6-4C 3/8" M.P. Male to 1/4" H.P. Male 2.12 0.62 20,000
Y5Y6-6-9C 3/8" M.P. Male to 9/16 H.P. Male 2.50 1.12 20,000
Y5Y6-9-4C 9/16" M.P. Male to 1/4" H.P. Male 2.25 0.87 20,000
Y5Y6-9-9C 9/16" M.P. Male to 9/16" H.P. Male 2.62 1.12 20,000
Y5Y6-12-4C 3/4" M.P. Male to 1/4" H.P. Male 2.62 1.12 20,000
Y5Y6-12-6C 3/4" M.P. Male to 3/8" H.P. Male 2.75 1.12 20,000
Y5Y6-12-9C 3/4" M.P. Male to 9/16" H.P. Male 3.00 1.12 20,000
Y5Y6-16-4C 1' M.P. Male to 1/4" H.P. Male 3.62 1.00 20,000
Y5Y6-16-6C 1" M.P. Male to 3/8" H.P. Male 4.00 1.00 20,000
Y5Y6-16-9C 1" M.P. Male to 9/16" H.P. Male 4.00 1.12 20,000
