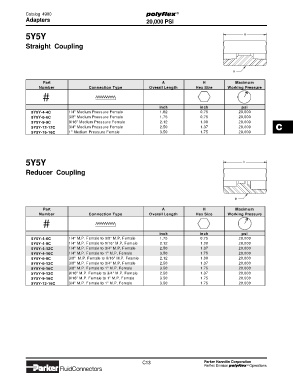

Page 162 - Parker - Polyflex Hose Products (Ultra High Pressure Thermoplastic Hose)

Catalog 4900 polyflex ®
Adapters 20,000 PSI

5Y5Y A

Straight Coupling

H

Part A H Maximum
Number Connection Type Overall Length Hex Size Working Pressure

inch inch psi
5Y5Y-4-4C 1/4" Medium Pressure Female 1.62 0.75 20,000
5Y5Y-6-6C 3/8" Medium Pressure Female 1.75 0.75 20,000
5Y5Y-9-9C 9/16" Medium Pressure Female 2.12 1.00 20,000
5Y5Y-12-12C 3/4" Medium Pressure Female 2.50 1.37 20,000 C
5Y5Y-16-16C 1" Medium Pressure Female 3.50 1.75 20,000

5Y5Y A

Reducer Coupling

H

Part A H Maximum
Number Connection Type Overall Length Hex Size Working Pressure

inch inch psi
5Y5Y-4-6C 1/4" M.P. Female to 3/8" M.P. Female 1.75 0.75 20,000
5Y5Y-4-9C 1/4" M.P. Female to 9/16" M.P. Female 2.12 1.00 20,000
5Y5Y-4-12C 1/4" M.P. Female to 3/4" M.P. Female 2.50 1.37 20,000
5Y5Y-4-16C 1/4" M.P. Female to 1" M.P. Female 3.50 1.75 20,000
5Y5Y-6-9C 3/8" M.P. Female to 9/16" M.P. Feamle 2.12 1.00 20,000
5Y5Y-6-12C 3/8" M.P. Female to 3/4" M.P. Female 2.50 1.37 20,000
5Y5Y-6-16C 3/8" M.P. Female to 1" M.P. Female 3.50 1.75 20,000
5Y5Y-9-12C 9/16" M.P. Female to 3/4" M.P. Female 2.50 1.37 20,000
5Y5Y-9-16C 9/16" M.P. Female to 1" M.P. Female 3.50 1.75 20,000
5Y5Y-12-16C 3/4" M.P. Female to 1" M.P. Female 3.50 1.75 20,000

C13 Parker Hannifin Corporation
Parflex Division polyflex Operations
®
FluidConnectors
