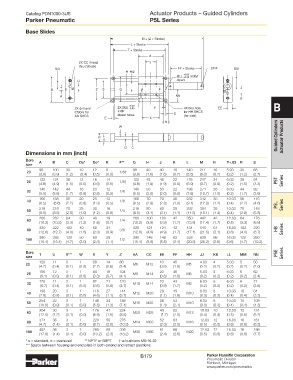

Page 180 - Parker - Parker Pneumatic

Catalog PDN1000-3US Actuator Products – Guided Cylinders
Parker Pneumatic P5L Series

Base Slides

M + (2 × Stroke)
L + Stroke
T + Stroke
A
2X CC thread J
thru (Shock)
S/2 FF + Stroke 2X F B/2
H H/2
+0.03
ØLL MM
–0.00
U dowel
B Z S G
P NN
K
+0.03 B
2X drill and 2X ØJJ –0.00 V 4X thru hole EE
C'Bore for KK E for HH SHCS
AA SHCS dowel holes (far side)
E X
N
W
R Guided Cylinders Actuator Products
Y
D C
Dimensions in mm (inch)
Bore
size A B C Ds* Do* E F** G H J K L M N P+.03 R S
98 100 30 10 12 8 98 40 40 18 140 211 18 5.03 30 68
20 1/8†
(3.9) (3.9) (1.2) (0.4) (0.5) (0.3) (3.9) (1.6) (1.6) (0.7) (5.5) (8.3) (0.7) (0.2) (1.2) (2.7)
122 124 38 12 16 14 122 48 48 22 176 247 24 6.03 38 84 P5T
25 1/8† Series
(4.8) (4.9) (1.5) (0.5) (0.6) (0.6) (4.8) (1.9) (1.9) (0.9) (6.9) (9.7) (0.9) (0.2) (1.5) (3.3)
140 142 44 16 20 12 140 50 50 22 198 271 26 6.03 44 92
32 1/8
(5.5) (5.6) (1.7) (0.6) (0.8) (0.5) (5.5) (2.0) (2.0) (0.9) (7.8) (10.7) (1.0) (0.2) (1.7) (3.6)
166 168 56 20 25 13 166 70 70 26 232 312 30 10.03 56 116
40 1/8
(6.5) (6.6) (2.2) (0.8) (1.0) (0.5) (6.5) (2.8) (2.8) (1.0) (9.1) (12.3) (1.2) (0.4) (2.2) (4.6) P5L Series
216 218 70 25 30 16 216 80 80 28 292 384 35 10.03 70 148
50 1/4
(8.5) (8.6) (2.8) (1.0) (1.2) (0.6) (8.5) (3.1) (3.1) (1.1) (11.5) (15.1) (1.4) (0.4) (2.8) (5.8)
260 262 84 30 40 19 260 100 100 42 350 442 42 12.03 84 176
63 1/4
(10.2) (10.3) (3.3) (1.2) (1.6) (0.7) (10.2) (3.9) (3.9) (1.7) (13.8) (17.4) (1.7) (0.5) (3.3) (6.9)
320 322 102 40 50 24 320 124 124 42 434 545 54 16.03 102 220 HB
80 3/8 Series
(12.6) (12.7) (4.0) (1.6) (2.0) (0.9) (12.6) (4.9) (4.9) (1.7) (17.1) (21.5) (2.1) (0.6) (4.0) (8.7)
390 392 120 50 60 28 390 148 148 62 528 639 66 16.03 120 260
100 1/2
(15.4) (15.4) (4.7) (2.0) (2.4) (1.1) (15.4) (5.8) (5.8) (2.4) (20.8) (25.2) (2.6) (0.6) (4.7) (10.2)
Bore P5E Series
size T U V*** W X Y Z AA CC EE FF HH JJ KK LL MM NN
120 11 3 1 68 14 86 16 45 4.03 4 5.03 5 50
20 M6 M12 M5
(4.7) (0.4) (0.1) (0.0) (2.7) (0.6) (3.4) (0.6) (1.8) (0.2) (0.2) (0.2) (0.2) (2.0)
156 12 3 1 84 18 104 20 46 5.03 5 6.03 6 62
25 M8 M14 M6
(6.1) (0.5) (0.1) (0.0) (3.3) (0.7) (4.1) (0.8) (1.8) (0.2) (0.2) (0.2) (0.2) (2.4)
170 11 3 1 92 21 120 23 43 6.03 6 6.03 6 71
32 M10 M14 M8
(6.7) (0.4) (0.1) (0.0) (3.6) (0.8) (4.7) (0.9) (1.7) (0.2) (0.2) (0.2) (0.2) (2.8)
198 20 3 1 116 27 144 29 49 8.03 8 10.03 10 84
40 M12 M20 M10
(7.8) (0.8) (0.1) (0.0) (4.6) (1.1) (5.7) (1.1) (1.9) (0.3) (0.3) (0.4) (0.4) (3.3)
254 22 3 1 148 34 188 36 53 8.03 8 10.03 10 109
50 M16 M25 M10
(10.0) (0.9) (0.1) (0.0) (5.8) (1.3) (7.4) (1.4) (2.1) (0.3) (0.3) (0.4) (0.4) (4.3)
304 30 3 1 176 41 224 43 52 10.03 10 12.03 12 131
63 M20 M25 M12
(12.0) (1.2) (0.1) (0.0) (6.9) (1.6) (8.8) (1.7) (2.0) (0.4) (0.4) (0.5) (0.5) (5.2)
374 36 3 1 220 50 276 52 64 12.03 12 16.03 16 161
80 M24 M33 M16
(4.7) (1.4) (0.1) (0.0) (8.7) (2.0) (10.9) (2.0) (2.5) (0.5) (0.5) (0.6) (0.6) (6.3)
452 36 3 1 260 59 336 61 66 12.03 12 16.03 16 196
100 M30 M36 M20
(17.8) (1.4) (0.1) (0.0) (10.2) (2.3) (13.2) (2.4) (2.6) (0.5) (0.5) (0.6) (0.6) (7.7)
* s = standard, o = oversized ** NPTF or BSPT † w/cushions M5/10-32
*** Space between housing and end plate in both extend and retract positions.
