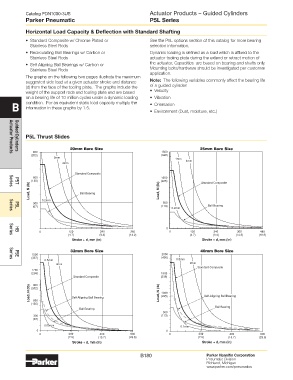

Page 181 - Parker - Parker Pneumatic

Catalog PDN1000-3US Actuator Products – Guided Cylinders
Parker Pneumatic P5L Series

Horizontal Load Capacity & Deflection with Standard Shafting

• Standard Composite w/ Chrome Plated or See the P5L options section of this catalog for more bearing
Stainless Steel Rods selection information.
• Recirculating Ball Bearings w/ Carbon or Dynamic loading is defined as a load which is affixed to the
Stainless Steel Rods actuator tooling plate during the extend or retract motion of
• Self Aligning Ball Bearings w/ Carbon or the actuator. Capacities are based on bearing and shafts only.
Stainless Steel Rods Mounting bolts/hardware should be investigated per customer
The graphs on the following two pages illustrate the maximum application.
suggested side load at a given actuator stroke and distance Note: The following variables commonly affect the bearing life
(d) from the face of the tooling plate. The graphs include the of a guided cylinder:
weight of the support rods and tooling plate and are based • Velocity
on a bearing life of 10 million cycles under a dynamic loading • Vibration
B condition. For an equivalent static load capacity multiply the • Orientation
information in these graphs by 1.5.
• Environment (Dust, moisture, etc.)

P5L Thrust Slides

20mm Bore Size 25mm Bore Size
900 1500
Guided Cylinders
Actuator Products
(202) (338)
2mm
1mm 4mm
4mm
Standard Composite
600 1000 Standard Composite
Load, N (lb) (135) Ball Bearing Load, N (lb) (225)
P5T
Series
0.2mm
300 500
(67) (113) 0.2mm Ball Bearing
P5L
Series

0
0 120 240 360 0 120 240 360 480
(4.7) (9.4) (14.2) (4.7) (9.4) (14.2) (18.9)
HB
Series
Stroke + d, mm (in) Stroke + d, mm (in)
32mm Bore Size 40mm Bore Size
1500 2000
(337) (450)
P5E
0.5mm 0.5mm
Series
4mm 2mm
Standard Composite
1200
(269) 1500
Standard Composite (338)
900
Load, N (lb) (202) Self-Aligning Ball Bearing Load, N (lb) 1000 Self-Aligning Ball Bearing
(225)
600
(135)
Ball Bearing
Ball Bearing
500
300 (113)
(67)
0.05mm 0.1mm
0 0
0 200 400 600 0 200 400 600
(7.9) (15.7) (23.6) (7.9) (15.7) (23.6)
Stroke + d, mm (in) Stroke + d, mm (in)
