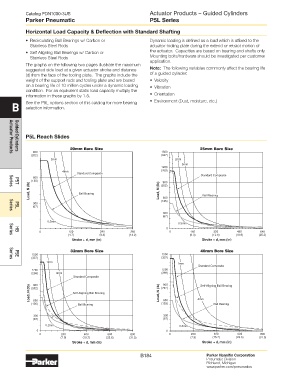

Page 185 - Parker - Parker Pneumatic

Catalog PDN1000-3US Actuator Products – Guided Cylinders
Parker Pneumatic P5L Series

Horizontal Load Capacity & Deflection with Standard Shafting

• Recirculating Ball Bearings w/ Carbon or Dynamic loading is defined as a load which is affixed to the
Stainless Steel Rods actuator tooling plate during the extend or retract motion of
• Self Aligning Ball Bearings w/ Carbon or the actuator. Capacities are based on bearing and shafts only.
Stainless Steel Rods Mounting bolts/hardware should be investigated per customer
application.
The graphs on the following two pages illustrate the maximum
suggested side load at a given actuator stroke and distance Note: The following variables commonly affect the bearing life
(d) from the face of the tooling plate. The graphs include the of a guided cylinder:
weight of the support rods and tooling plate and are based • Velocity
on a bearing life of 10 million cycles under a dynamic loading • Vibration
condition. For an equivalent static load capacity multiply the
information in these graphs by 1.5. • Orientation
B See the P5L options section of this catalog for more bearing • Environment (Dust, moisture, etc.)
selection information.

P5L Reach Slides

20mm Bore Size 25mm Bore Size
900 1500
Guided Cylinders
Actuator Products
(202) (337)
2mm 2mm
5mm
1200
4mm (269)
Standard Composite Standard Composite
600 900
Load, N (lb) (135) Ball Bearing Load, N (lb) (202) Ball Bearing
P5T
Series
600
300 (135)
(67)
P5L
Series
300
(67)
0.2mm
0.5mm
0
0 120 240 360 0 160 320 480 640
(4.7) (9.4) (14.2) (6.3) (12.6) (18.9) (25.2)
HB
Series
Stroke + d, mm (in) Stroke + d, mm (in)
32mm Bore Size 40mm Bore Size
1500 1500
(337) (337)
P5E
Series
1mm
1mm
Standard Composite
1200 1200
(269) 4mm (269)
Standard Composite 900
900
Load, N (lb) (202) Self-Aligning Ball Bearing Load, N (lb) (202) Self-Aligning Ball Bearing
600
600
(135) Ball Bearing (135) 4mm Ball Bearing
300 300
(67) (67)
0.2mm 0.2mm
0 0
0 200 400 600 800 0 200 400 600 800
(7.9) (15.7) (23.6) (31.5) (7.9) (15.7) (23.6) (31.5)
Stroke + d, mm (in) Stroke + d, mm (in)
