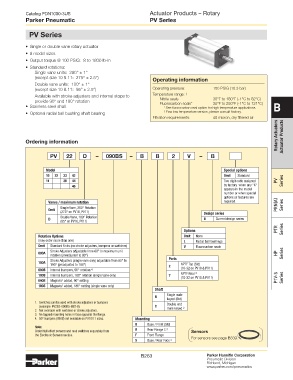

Catalog PDN1000-3US Actuator Products – Rotary
Parker Pneumatic PV Series

PV Series

• Single or double vane rotary actuator
• 8 model sizes
• Output torque @ 100 PSIG: 8 to 1800 lb-in
• Standard rotations:
Single vane units: 280° ± 1°
(except size 10 & 11: 275° ± 2.5°)
Operating information
Double vane units: 100° ± 1°
(except size 10 & 11: 95° ± 2.5°) Operating pressure: 150 PSIG (10.3 bar)

Available with stroke adjusters and internal stops to Temperature range: †
provide 90° and 180° rotation Nitrile seals 30°F to 180°F (-1°C to 82°C)
• Stainless steel shaft Fluorocarbon seals* 30°F to 250°F (-1°C to 121°C) B
* See fluorocarbon seal option for high temperature applications.
• Optional radial ball bushing shaft bearing † Fow low temperature version, please consult factory.
Filtration requirements: 40 micron, dry filtered air
Rotary Actuators Actuator Products

Ordering information

PV 22 D – 090BS – B B 2 V – B

Model Special options
10 22 33 42 Omit Standard
11 36 44 Two digit code assigned PV Series
46 by factory when any "X"
appears in the model
number or when special
options or features are
Vanes / maximum rotation required. PRN(A)
Single Vane, 280° Rotation Series
Omit
(275° on PV10, PV11) Design series
Double Vane, 100° Rotation
D B Current design series
(95° on PV10, PV11)
PTR Series
Options
Rotation Options Omit None
(may order more than one) L Radial ball bushings
Omit Standard Units (no stroke adjusters, bumpers or switches) V Fluorocarbon seals
Stroke Adjusters adjustable from 60° to maximum unit
090A HP Series
rotation (preadjusted to 90°)
Stroke Adjusters (single vane only) adjustable from 60° to Ports
180A
190° (preadjusted to 180°) 2 NPTF Top (Std)
090B Internal bumpers, 90° rotation 4 (10-32 on PV10 & PV11)
180B Internal bumpers, 180° rotation (single vane only) 7 NPTF Rear 2 P1V-S Series
(10-32 on PV10 & PV11)
090S Magnets 1 added, 90° setting
180S Magnets 1 added, 180° setting (single vane only)
Shaft
Single male
B
keyed (Std)
1. Switches can be used with stroke adjusters or bumpers Double end
(example: PV22D-090BS-BB2-B). C
2. Not available with switches or stroke adjusters. male keyed 2
3. No tapped mounting holes in face opposite the flange.
4. 90° bumpers (090B) not available on PV10/11 sizes. Mounting
B Base / Front (Std)
Note:
Order Hall effect sensors and reed switches separately from R Rear Flange 2, 3 Sensors
the Electronic Sensors section. F Front Flange For sensors see page B339.
S Base / Rear Face 2
