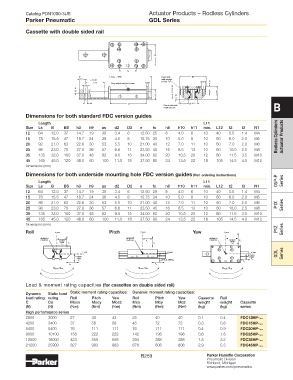

Catalog PDN1000-3US Actuator Products – Rodless Cylinders
Parker Pneumatic gDl Series

Cassette with double sided rail

as

fs
L max. = 4000 Fixed side BS
L11 min. z x L12 with respect
L12 Drag adjustment set screw 5 to dim. “e” N1 h10
D2
h11 x 45
t2 h8 h9 ±0.1
h3 t3
d2 Ls e B ±0.15
Datum side with B
depth groove
Dimensions for both standard FDC version guides
Length L11
Size Ls B BS h3 h9 as d2 D2 e fs h8 h10 h11 min. L12 t2 t3 N1
12 64 12.0 37 14.7 19 30 3.4 6 12.50 25 8 4.0 6 10 40 5.5 1.4 M4
15 78 15.5 47 18.7 24 38 4.5 8 15.75 30 10 5.0 8 10 60 6.0 2.0 M5 Rodless Cylinders Actuator Products
20 92 21.0 63 22.6 30 53 5.5 10 21.00 40 12 7.0 11 10 60 7.0 2.0 M6
25 98 23.0 70 27.0 36 57 6.6 11 23.50 45 16 8.5 13 10 60 10.0 2.5 M8
35 135 32.0 100 37.0 48 82 9.0 15 34.00 62 20 10.5 20 12 80 11.5 3.5 M10
45 165 45.0 120 46.0 60 100 11.0 18 37.50 80 24 13.5 22 16 105 14.5 4.0 M12
Dimensions (mm)
Dimensions for both underside mounting hole FDC version guides (ref. ordering instructions)
Length L11 OSP-P Series
Size Ls B BS h3 h9 as d2 D2 e fs h8 h10 h11 min. L12 t2 t3 N1
12 64 12.0 37 14.7 19 30 3.4 6 12.50 29 8 4.0 6 10 40 5.5 1.4 M4
15 78 15.5 47 18.7 24 38 4.5 8 15.75 34 10 5.0 8 10 60 6.0 2.0 M5
20 92 21.0 63 22.6 30 53 5.5 10 21.00 40 12 7.0 11 10 60 7.0 2.0 M6 P1X Series
25 98 23.0 70 27.0 36 57 6.6 11 23.50 45 16 8.5 13 10 60 10.0 2.5 M8
35 135 32.0 100 37.0 48 82 9.0 15 34.00 62 20 10.5 20 12 80 11.5 3.5 M10
45 165 45.0 120 46.0 60 100 11.0 18 37.50 90 24 13.5 22 16 105 14.5 4.0 M12
Dimensions (mm)
roll Z-AXIS Pitch Z-AXIS yaw Y-AXIS P1Z Series
MOMENT MOMENT MOMENT
CENTER LEVER CENTER X Z CENTER LEVER F Y
ARM F Z ARM
F Z X Y
Z Y
Y-AXIS X-AXIS X-AXIS GDL Series
LEVER
LEVER ARM
ARM Y X
LEVER ARM Z X
Y Z
F X
F Y F X
M OCX , M CX M OCY , M CY M COZ , M CZ
Load & moment rating capacities (for cassettes on double sided rail)
Dynamic Static load Static moment rating capacities: Dynamic moment rating capacities:
load rating rating Roll Pitch Yaw Roll Pitch Yaw Cassette Rail
C Co Mocx Mocy Mocz Mcx Mcy Mcz weight weight Cassette
(N) (N) (Nm) (Nm) (Nm) (Nm) (Nm) (Nm) (kg) (kg) series
High performance series
2800 3000 27 43 43 25 40 40 0.1 0.4 FDC12HP-...
4200 3400 37 58 58 45 72 72 0.3 0.8 FDC15HP-...
5400 5400 76 111 111 76 111 111 0.4 0.9 FDC20HP-...
9000 10100 158 222 222 142 198 198 0.6 1.8 FDC25HP-...
12500 18000 423 559 559 294 388 388 1.5 3.2 FDC35HP-...
21200 25900 827 983 983 678 806 806 2.9 5.5 FDC45HP-...
