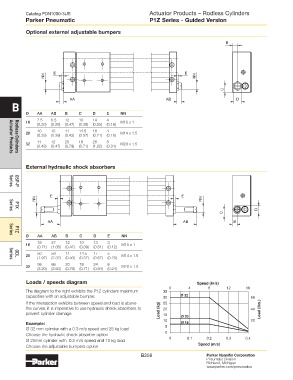

Catalog PDN1000-3US Actuator Products – Rodless Cylinders
Parker Pneumatic P1Z Series - guided Version

Courbes
Optional external adjustable bumpers
B

E E
NN NN

C
AA AB D
B

Ø AA AB B C D E NN
7.5 6.5 12 10 14 4
16 M10 x 1
(0.30) (0.26) (0.47) (0.39) (0.55) (0.16)
10 10 11 14.5 18 4
20 M14 x 1.5
(0.39) (0.39) (0.43) (0.57) (0.71) (0.16)
11 12 20 18 26 8
32 M20 x 1.5
(0.43) (0.47) (0.79) (0.71) (1.02) (0.31)
Actuator Products
Rodless Cylinders
external hydraulic shock absorbers

Series
OSP-P
E E
NN NN
D
P1X
C
Series
AA AB B

Ø AA AB B C D E NN
P1Z
Series
18 27 12 10 13 3
16 M10 x 1
(0.71) (1.06) (0.47) (0.39) (0.51) (0.12)
50 59 11 14.5 17 5
20 (1.97) (2.32) (0.43) (0.57) (0.67) (0.20) M14 x 1.5
GDL
Series
56 66 20 18 24 6
32 M20 x 1.5
(2.20) (2.60) (0.79) (0.71) (0.94) (0.24)
loads / speeds diagram Speed (in/s)
0 4 8 12 16
The diagram to the right exhibits the P1Z cylinders maximum 35
capacities with an adjustable bumper. 30 Ø 32 66
If the intersection exhibits between speed and load is above 25
the curves, it is imperative to use hydraulic shock absorbers to 20 44 Load (lbs.)
prevent cylinder damage. Load (kg) 15 Ø 20

example: 10 Ø 16 22
Ø 32 mm cylinder with a 0.3 m/s speed and 25 kg load 5
Choose the hydraulic shock absorber option 0
Ø 20mm cylinder with 0.2 m/s speed and 10 kg load 0 0.1 0.2 0.3 0.4
Choose the adjustable bumpers option Speed (m/s)
