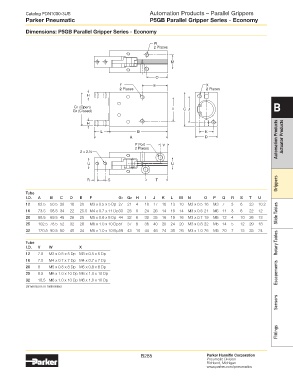

Parker Pneumatic P5GB Parallel Gripper Series - Economy

Dimensions: P5GB Parallel Gripper Series - Economy

W
2 Places

M

O
F E X
2 Places 2 Places
H

G1 (Open) I B
G2 (Closed) C J

H
L B K
A D Automation Products Actuator Products
P Port V
2 Places
2 x 2-N

U U

Grippers
R S T

Tube
I.D. A B C D E F G1 G2 H I J K L M N O P Q R S T U
12 63.5 50.5 28 16 20 M3 x 0.5 x 5 Dp 27 21 4 18 17 10 13 10 M3 x 0.5 16 M3 7 3 6 23 10.2
16 73.5 58.5 34 22 25.5 M4 x 0.7 x 11 Dp33 25 5 24 26 14 15 14 M3 x 0.5 21 M5 11 3 8 22 12 Slide Tables
20 88.5 69.5 45 26 25 M5 x 0.8 x 8 Dp 44 32 6 30 35 16 19 16 M3 x 0.7 19 M5 12 4 10 26 13
25 102.5 78.5 52 32 28 M6 x 1.0 x 10 Dp51 37 8 36 40 20 24 20 M3 x 0.8 22 M5 14 5 12 29 18
32 120.5 90.5 60 40 34 M6 x 1.0 x 10 Dp59 43 10 44 46 24 30 26 M3 x 1.0 26 M5 20 7 15 35 24

Tube Rotary Tables
I.D. V W X
12 7.5 M3 x 0.5 x 5 Dp M3 x 0.5 x 5 Dp
16 7.5 M4 x 0.7 x 7 Dp M4 x 0.7 x 7 Dp
20 8 M5 x 0.8 x 8 Dp M5 x 0.8 x 8 Dp
25 8.5 M6 x 1.0 x 10 Dp M6 x 1.0 x 10 Dp Escapements
32 10.5 M6 x 1.0 x 10 Dp M6 x 1.0 x 10 Dp
Dimensions in millimeters
