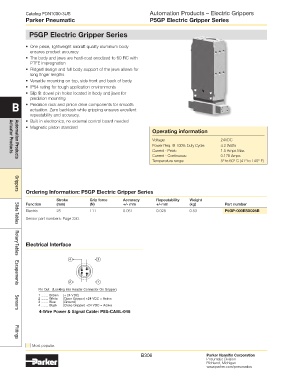

Page 307 - Parker - Parker Pneumatic

Catalog PDN1000-3US Automation Products – Electric Grippers
Parker Pneumatic P5GP Electric Gripper Series

P5GP Electric Gripper Series

• One piece, lightweight aircraft quality aluminum body
ensures product accuracy
• The body and jaws are hard-coat anodized to 60 RC with
PTFE impregnation
• Ridged design and full body support of the jaws allows for
long finger lengths
• Versatile mounting on top, side front and back of body.
• IP54 rating for tough application environments
• Slip fit dowel pin holes located in body and jaws for
precision mounting
• Precision rack and pinion drive components for smooth
B actuation. Zero backlash while gripping ensures excellent
repeatability and accuracy.
• Built in electronics, no external control board needed
• Magnetic piston standard
Operating information

Voltage: 24VDC
Power Req. @ 100% Duty Cycle: 4.2 Watts
Current - Peak: 1.5 Amps Max.
Current - Continuous: 0.175 Amps
Actuator Products
Temperature range: 5° to 60° C (41° to 140° F)
Automation Products

Ordering Information: P5GP Electric Gripper Series
Grippers
Stroke Grip force Accuracy Repeatability Weight
Function (mm) (N) +/- mm +/-mm (kg) Part number
Electric 25 111 0.051 0.025 0.53 P5GP-000ESX025B
Sensor part numbers: Page 330.
Slide Tables

Electrical Interface

Rotary Tables
4 3

2 1
Escapements
Pin Out (Looking Into Header Connector On Gripper)
1 ........ Brown (+ 24 VDC)
2 ........ White (Open Gripper) +24 VDC = Active
3 ........ Blue (Ground)
4 ........ Black (Close Gripper) +24 VDC = Active
4-Wire Power & Signal Cable: P8S-CABL-046
Sensors

Fittings
Most popular.
