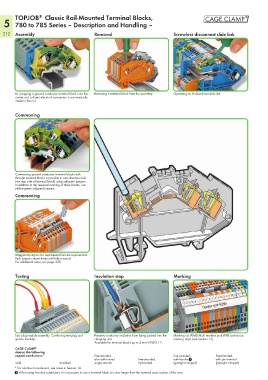

TOPJOB Classic Rail-Mounted Terminal Blocks,
®
5 780 to 785 Series – Description and Handling –
212 Assembly Removal Screwless disconnect slide link

By snapping a ground conductor terminal block onto the Removing a terminal block from the assembly. Operating an N-disconnect slide link.
carrier rail, a direct electrical connection is automatically
made to the rail.

Commoning

Commoning ground conductor terminal blocks with
through terminal blocks is possible in one direction only
(via rear side of terminal block) using adjacent jumpers.
In addition to the required marking of these blocks, use
yellow-green adjacent jumpers.
Commoning

Staggered jumpers for sophisticated circuit requirements.
Push jumpers down firmly until fully inserted.
For additional notes, see page 295.

Testing Insulation stop Marking

Test plug module assembly. Combining test plug and Prevents conductor insulation from being pushed into the Marking via WMB Multi markers and WFB continuous
spacer modules. clamping unit. marking strips (see Section 13).
Available for terminal blocks up to 4 mm²/AWG 12.
CAGE CLAMP
®
clamps the following
copper conductors:* fine-stranded, fine-stranded, fine-stranded,
also with tinned fine-stranded, with ferrule 1 with pin terminal
solid stranded single strands tip-bonded (gastight crimped) (gastight crimped)
* For aluminum conductors, see notes in Section 14.
1 When using ferruled conductors, it is necessary to use a terminal block one size larger than the nominal cross section of the wire.
