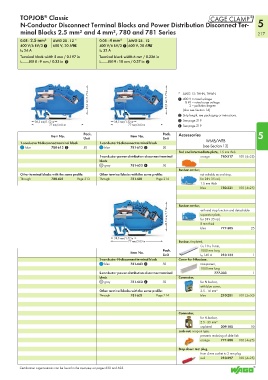

Page 219 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

TOPJOB Classic
®
N-Conductor Disconnect Terminal Blocks and Power Distribution Disconnect Ter- 5
minal Blocks 2.5 mm² and 4 mm², 780 and 781 Series 217
0.08 - 2.5 mm² AWG 28 - 12 * 0.08 - 4 mm² AWG 28 - 12
400 V/6 kV/3 1 600 V, 20 AU 400 V/6 kV/3 1 600 V, 20 AU
I N 24 A I N 32 A
Terminal block width 5 mm / 0.197 in Terminal block width 6 mm / 0.236 in
L 8 - 9 mm / 0.33 in 2 L 9 - 10 mm / 0.37 in 2

43,5 mm/1.71in 43,5 mm/1.71in * AWG 12: THHN, THWN
1 400 V = rated voltage
8 kV = rated surge voltage
3 = pollution degree
(also see Section 14)
2 Strip length, see packaging or instructions.
38,5 mm/1.52 in 38,5 mm/1.52 in 3 See page 219
77 mm/3.03 in 77 mm/3.03 in 4 See page 219
Pack. Pack. Accessories 5
Item No. Item No.
Unit Unit
1-conductor N-disconnect terminal block 1-conductor N-disconnect terminal block WMB/WFB
blue 780-613 3 50 blue 781-613 3 50 (see Section 13)
End and intermediate plate, 1.5 mm thick
1-conductor power distribution disconnect terminal orange 780-317 100 (4x25)
block
gray 781-623 4 50
Busbar carrier,
Other terminal blocks with the same profile: Other terminal blocks with the same profile: not suitable as end stop,
Through 780-601 Page 213 Through 781-601 Page 214 for DIN 35 rail,
1.5 mm thick
blue 780-321 100 (4x25)

Busbar carrier, with end stop function and detachable
43,5 mm/1.71in separator plate,

for DIN 35 rail,
8 mm thick
blue 777-305 25

38,5 mm/1.52 in
77 mm/3.03 in Busbar, tin-plated,
Cu 10 x 3 mm,
Pack. 1000 mm long
Item No.
Unit I N 140 A 210-133 1
2-conductor N-disconnect terminal block Cover for N-busbar,
blue 781-643 3 50 transparent,
1000 mm long
2-conductor power distribution disconnect terminal 777-303 1
block Connector,
gray 781-653 4 50 for N-busbar,
with blue cover,
Other terminal blocks with the same profile: 2.5 - 16 mm²
Through 781-631 Page 214 blue 210-281 100 (2x50)

Connector,
for N-busbar,
2.5 - 35 mm²
unplated 209-105 50
Lock-out, snap-on type,
prevents reclosing of slide link
orange 777-300 100 (4x25)
Step-down test plug,
from 4 mm socket to 2 mm plug
red 210-297 100 (4x25)

Certification organizations can be found in the overview on pages 622 and 623.
