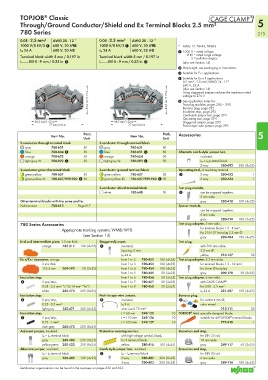

TOPJOB Classic
®
Through/Ground Conductor/Shield and Ex Terminal Blocks 2.5 mm² 5
780 Series 213
0.08 - 2.5 mm² AWG 28 - 12 * 0.08 - 2.5 mm² AWG 28 - 12 *
1000 V/8 kV/3 1 600 V, 20 AU 1000 V/8 kV/3 1 600 V, 20 AU * AWG 12: THHN, THWN
I N 24 A 600 V, 20 A2 I N 24 A 600 V, 25 A2 1 1000 V = rated voltage
Terminal block width 5 mm / 0.197 in Terminal block width 5 mm / 0.197 in 8 kV = rated surge voltage
3 = pollution degree
L 8 - 9 mm / 0.33 in 2 L 8 - 9 mm / 0.33 in 2 (also see Section 14)
2 Strip length, see packaging or instructions.
3 Suitable for Ex i applications
4 Suitable for Ex e II applications
0.2 mm² - 2.5 mm²/AWG 24 - 12*
690 V, 23 A
(also see Section 14)
Using staggered jumpers reduces the maximum rated
43,5 mm/1.71in 43,5 mm/1.71in 5 See application notes for:
voltage to 275 V.
Test plug modules, pages 288 – 290
Banana plug, page 292
Insulation stop, page 293
Comb-style jumper bar, page 294
Operating tool, page 294
38,5 mm/1.52 in 38,5 mm/1.52 in Staggered jumper, page 295
77 mm/3.03 in 77 mm/3.03 in Push-in type wire jumper, page 295
Pack. Pack. Accessories 5
Item No. Item No.
Unit Unit
2-conductor through terminal block 3-conductor through terminal block
gray 780-601 50 gray 780-631 50
blue 780-604 3 50 blue 780-651 3 50 Alternate comb-style jumper bar,
orange 780-602 50 orange 780-654 50 insulated,
light gray 4 780-992 4 50 light gray 4 780-993 4 50 I N = I N terminal block
2-way 280-492 200 (8x25)
2-conductor ground terminal block 3-conductor ground terminal block Operating tool, of insulating material
green-yellow 780-607 50 green-yellow 780-637 50 5 2-way 280-432 1
green-yellow 4 780-607/999-950 4 50 green-yellow 4 780-637/999-950 4 50 3-way 280-433 1
3-conductor shield terminal block Test plug module,
white 780-640 50 5 can be snapped together,
5 mm wide
Other terminal blocks with the same profile: gray 280-418 100 (4x25)
N-disconnect 780-613 Page217 Spacer module,
can be snapped together,
5 mm wide
gray 280-419 100 (4x25)
780 Series Accessories Test plug adapter, 5 mm wide,
Appropriate marking systems: WMB/WFB for terminal blocks 1.5 - 4 mm²,
for 210-137 test plug 2.3 mm Ø
(see Section 13) gray 280-404 100 (4x25)
End and intermediate plate, 1.5 mm thick Staggered jumper, Test plug,
orange 780-317 100 (4x25) 5 insulated, with 500 mm cable,
Spacing: 5 mm, 2.3 mm Ø
I N 24 A yellow 210-137 50
Ex e/Ex i separator, orange, from 1 to 2 780-452 100 (4x25) Test plug adapter, 8.3 mm wide,
3 mm thick from 1 to 3 780-453 100 (4x25) for terminal blocks 1.5 - 10 mm²,
125.5 mm 209-192 50 (2x25) from 1 to 4 780-454 100 (4x25) for 4 mm Ø test plug
from 1 to 5 780-455 50 (2x25) gray 209-170 50 (2x25)
Insulation stop, from 1 to 6 780-456 50 (2x25) Test plug adapter, 6 mm wide,
®
5 5 pcs/strip, from 1 to 7 780-457 50 (2x25) with CAGE CLAMP ,
0.08 - 0.2 mm² “s” (0.14 mm² “f-st”) from 1 to 8 780-458 50 (2x25) for 0.08 - 2.5 mm²
white 280-470 200 (8x25) I N 24 A 281-407 100 (4x25)
Insulation stop, Push-in type wire jumper, Banana plug,
5 5 pcs/strip, 5 insulated, 5 for socket 4 mm Ø,
0.25 - 0.5 mm² I N 9 A, color mixed
light gray 280-471 200 (8x25) wire size 0.75 mm² 215-111 50
®
Insulation stop, L = 60 mm 249-125 10 TOPJOB tool, specially designed blade,
®
5 5 pcs/strip, L = 110 mm 249-126 10 suitable for all TOPJOB terminal blocks
0.75 - 1 mm² L = 250 mm 249-127 10 777-310 1
dark gray 280-472 200 (8x25)
Adjacent jumper, insulated, Protective warning marker, Screwless end stop,
I N = I N terminal block with high-voltage symbol, black, for DIN 35 rail,
gray 280-402 200 (8x25) for 5 terminal blocks 10 mm wide
yellow-green 280-422 200 (8x25) yellow 280-415 100 (4x25) gray 249-117 50 (2x25)
Alternate jumper, insulated, Comb-style jumper bar, insulated, Screwless end stop,
I N = I N terminal block 5 I N = I N terminal block for DIN 35 rail,
gray 280-409 100 (4x25) 2-way 280-482 200 (8x25) 6 mm wide
3-way 280-483 200 (8x25) gray 249-116 100 (4x25)
Certification organizations can be found in the overview on pages 622 and 623.
