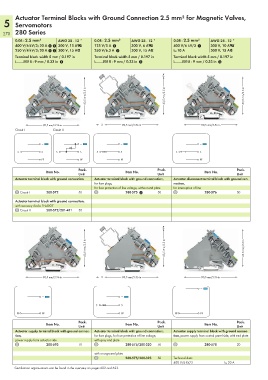

Page 272 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

Actuator Terminal Blocks with Ground Connection 2.5 mm² for Magnetic Valves,
5 Servomotors
270 280 Series
0.08 - 2.5 mm² AWG 28 - 12 * 0.08 - 2.5 mm² AWG 28 - 12 * 0.08 - 2.5 mm² AWG 28 - 12 *
400 V/6 kV/3; 20 A 1 2 300 V, 15 AU 125 V/5 A 2 300 V, 6 AU 400 V/6 kV/3 1 300 V, 10 AU
250 V/4 kV/3; 20 A 1 2 300 V, 15 A2 250 V/6.3 A 2 300 V, 15 A2 I N 10 A 300 V, 15 A2
Terminal block width 5 mm / 0.197 in Terminal block width 5 mm / 0.197 in Terminal block width 5 mm / 0.197 in
L 8 - 9 mm / 0.33 in 3 L 8 - 9 mm / 0.33 in 3 L 8 - 9 mm / 0.33 in 3

(
<______ 63,5 mm/2.5 in ______> <______ 63,5 mm/2.5 in ______>Y <______ 63,5 mm/2.5 in ______>

<___________ 90,5 mm/3.56 in ___________> > X <___________ 90,5 mm/3.56 in ___________> <___________ 90,5 mm/3.56 in ___________>
Circuit I Circuit II

S S S S S S S S
PE PE PE PE
Pack. Pack. Pack.
Item No. Unit Item No. Unit Item No. Unit
Actuator terminal block with ground connection Actuator terminal block with ground connection, Actuator disconnect terminal block with ground con-
for fuse plugs, nection,
for fuse protection of line voltage, without end plate for interruption of line
Circuit I 280-572 50 280-575 4 50 280-576 50
Actuator terminal block with ground connection,
with recovery diode 1N4007
Circuit II 280-572/281-411 50

(
<______ 63,5 mm/2.5 in ______> <______ 63,5 mm/2.5 in ______>Y <______ 63,5 mm/2.5 in ______>

<___________ 90,5 mm/3.56 in ___________> > X <___________ 90,5 mm/3.56 in ___________> <___________ 90,5 mm/3.56 in ___________>

S S
PE PE PE PE PE

Pack. Pack. Pack.
Item No. Item No. Item No.
Unit Unit Unit
Actuator supply terminal block with ground connec- Actuator terminal block with ground connection, Actuator supply terminal block with ground connec-
tion, for fuse plugs, for fuse protection of line voltage, tion, power supply from control panel side, with end plate
power supply form actuator side with gray end plate
280-593 10 280-575/280-320 50 280-578 20
with orange end plate
280-575/280-323 50 Technical data:
400 V/6 kV/3 I N 20 A
Certification organizations can be found in the overview on pages 622 and 623.
