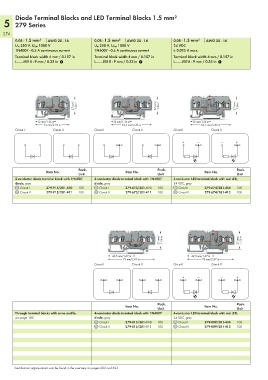

P. 276
Diode Terminal Blocks and LED Terminal Blocks 1.5 mm²
5 279 Series
274
0.08 - 1.5 mm² AWG 28 - 16 0.08 - 1.5 mm² AWG 28 - 16 0.08 - 1.5 mm² AWG 28 - 16
U N 250 V, U RM 1000 V U N 250 V, U RM 1000 V 24 VDC
1N4007 - 0.5 A continuous current 1N4007 - 0.5 A continuous current I F 0.025 A max.
Terminal block width 4 mm / 0.157 in Terminal block width 4 mm / 0.157 in Terminal block width 4 mm / 0.157 in
L 8 - 9 mm / 0.33 in 1 L 8 - 9 mm / 0.33 in 1 L 8 - 9 mm / 0.33 in 1
27 mm/ 1.06 in 27 mm/ 1.06 in 27 mm/ 1.06 in
32 mm/1.26 in 32 mm/1.26 in 32 mm/1.26 in
52 mm/2.05 in 62,5 mm/2.46 in 62,5 mm/2.46 in
Circuit I Circuit II Circuit I Circuit II Circuit I Circuit II
Pack. Pack. Pack.
Item No. Unit Item No. Unit Item No. Unit
2-conductor diode terminal block with 1N4007 3-conductor diode terminal block with 1N4007 3-conductor LED terminal block with red LED,
diode, gray diode, gray 24 VDC, gray
Circuit I 279-915/281-410 100 Circuit I 279-673/281-410 100 Circuit I 279-674/281-434 100
Circuit II 279-915/281-411 100 Circuit II 279-673/281-411 100 Circuit II 279-674/281-413 100
27 mm/ 1.06 in 27 mm/ 1.06 in
42,5 mm/1.67 in 42,5 mm/1.67 in
73 mm/2.87 in 73 mm/2.87 in
Circuit I Circuit II Circuit I Circuit II
Pack. Pack.
Item No. Item No.
Unit Unit
Through terminal blocks with same profile, 4-conductor diode terminal block with 1N4007 4-conductor LED terminal block with red LED,
see page 180 diode, gray 24 VDC, gray
Circuit I 279-815/281-410 100 Circuit I 279-809/281-434 100
Circuit II 279-815/281-411 100 Circuit II 279-809/281-413 100
Certification organizations can be found in the overview on pages 622 and 623.
