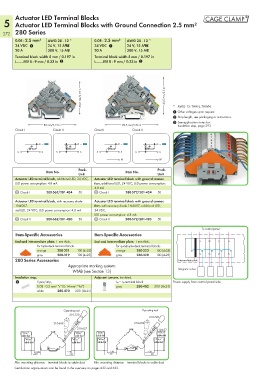

Page 274 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

Actuator LED Terminal Blocks
5 Actuator LED Terminal Blocks with Ground Connection 2.5 mm²
272 280 Series
0.08 - 2.5 mm² AWG 28 - 12 * 0.08 - 2.5 mm² AWG 28 - 12 *
24 VDC 1 24 V, 15 AU 24 VDC 1 24 V, 15 AU
20 A 300 V, 15 A2 20 A 300 V, 15 A2
Terminal block width 5 mm / 0.197 in Terminal block width 5 mm / 0.197 in
L 8 - 9 mm / 0.33 in 2 L 8 - 9 mm / 0.33 in 2

<___ 55,5 mm/2.19 in ___> <______ 63,5 mm/2.5 in ______> * AWG 12: THHN, THWN

1 Other voltages upon request.
2 Strip length, see packaging or instructions.
3 See application notes for:
<__________ 80 mm/3.15 in __________> <___________ 90,5 mm/3.56 in ___________> Insulation stop, page 293
Circuit I Circuit II Circuit I Circuit II

S S S S S S S S
PE PE
Pack. Pack.
Item No. Unit Item No. Unit
Actuator LED terminal block, additional LED, 24 VDC, Actuator LED terminal block with ground connec-
LED power consumption: 4.8 mA tion, additional LED, 24 VDC, LED power consumption:
4.8 mA
Circuit I 280-562/281-434 50 Circuit I 280-572/281-434 50
Actuator LED terminal block, with recovery diode Actuator LED terminal block with ground connec-
1N4007, tion, with recovery diode 1N4007, additional LED,
red LED, 24 VDC, LED power consumption: 4.8 mA 24 VDC,
LED power consumption: 4.8 mA
Circuit II 280-562/281-420 50 Circuit II 280-572/281-420 50

To control panel
Item-Specific Accessories Item-Specific Accessories
End and intermediate plate, 1 mm thick, End and intermediate plate, 1 mm thick,
for triple-deck terminal blocks for quadruple-deck terminal blocks
orange 280-321 100 (4x25) orange 280-323 100 (4x25)
gray 280-319 100 (4x25) gray 280-320 100 (4x25)
280 Series Accessories Intermediate plate
Appropriate marking system:
WMB (see Section 13) Magnetic valves
Insulation stop, Adjacent jumper, insulated,
3 5 pcs/strip, I N = I N terminal block Power supply from control panel side
0.08 - 0.2 mm² “s” (0.14 mm² “f-st”) gray 280-402 200 (8x25)
white 280-470 200 (8x25)

Operating tool Operating tool
210-720
210-720
210-658 210-658
210-657 210-657
“60er“ “60er“ “60er“ “60er“
cable duct cable duct cable duct cable duct
“40er“ “40er“ “40er“ “40er“
cable duct cable duct cable duct cable duct
20 20 30 30
30 30 40 40
Min. mounting distance – terminal blocks to cable duct Min. mounting distance – terminal blocks to cable duct
Certification organizations can be found in the overview on pages 622 and 623.
