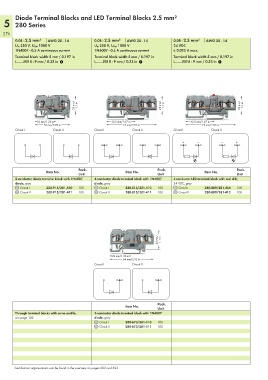

Page 278 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf
P. 278
Diode Terminal Blocks and LED Terminal Blocks 2.5 mm²
5 280 Series
276
0.08 - 2.5 mm² AWG 28 - 14 0.08 - 2.5 mm² AWG 28 - 14 0.08 - 2.5 mm² AWG 28 - 14
U N 250 V, U RM 1000 V U N 250 V, U RM 1000 V 24 VDC
1N4007 - 0.5 A continuous current 1N4007 - 0.5 A continuous current I F 0.025 A max.
Terminal block width 5 mm / 0.197 in Terminal block width 5 mm / 0.197 in Terminal block width 5 mm / 0.197 in
L 8 - 9 mm / 0.33 in 1 L 8 - 9 mm / 0.33 in 1 L 8 - 9 mm / 0.33 in 1
28 mm/ 1.1 in 28 mm/ 1.1 in 28 mm/ 1.1 in
32 mm/1.26 in 42,5 mm/1.67 in 42,5 mm/1.67 in
53 mm/2.09 in 75 mm/2.95 in 75 mm/2.95 in
Circuit I Circuit II Circuit I Circuit II Circuit I Circuit II
Pack. Pack. Pack.
Item No. Unit Item No. Unit Item No. Unit
2-conductor diode terminal block with 1N4007 4-conductor diode terminal block with 1N4007 4-conductor LED terminal block with red LED,
diode, gray diode, gray 24 VDC, gray
Circuit I 280-915/281-410 100 Circuit I 280-815/281-410 100 Circuit I 280-809/281-434 100
Circuit II 280-915/281-411 100 Circuit II 280-815/281-411 100 Circuit II 280-809/281-413 100
28 mm/ 1.1 in
32 mm/1.26 in
64 mm/2.52 in
Circuit I Circuit II
Pack.
Item No.
Unit
Through terminal blocks with same profile, 3-conductor diode terminal block with 1N4007
see page 182 diode, gray
Circuit I 280-673/281-410 100
Circuit II 280-673/281-411 100
Certification organizations can be found in the overview on pages 622 and 623.
