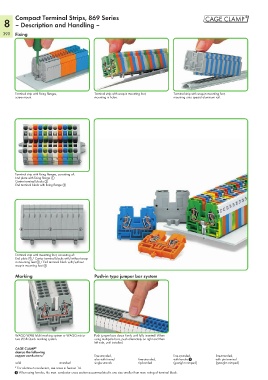

Page 392 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

Compact Terminal Strips, 869 Series
8 – Description and Handling –
390 Fixing

Terminal strip with fixing flanges, Terminal strip with snap-in mounting feet, Terminal strip with snap-in mounting feet,
screw mount. mounting in holes. mounting onto special aluminum rail.

? " !

Terminal strip with fixing flanges, consisting of:
End plate with fixing flange !
Center terminal blocks "
End terminal block with fixing flange ?

$ % &

Terminal strip with mounting feet, consisting of:
End plate $ / Center terminal blocks with/without snap-
in mounting feet % / End terminal block with/without
snap-in mounting foot &

Marking Push-in type jumper bar system

WAGO WMB Multi marking system or WAGO minia- Push jumper bars down firmly until fully inserted! When
ture WSB Quick marking system. using multipole bars, push alternately on right and then
left side, until installed.
CAGE CLAMP
®
clamps the following
copper conductors:* fine-stranded, fine-stranded, fine-stranded,
also with tinned fine-stranded, with ferrule 1 with pin terminal
solid stranded single strands tip-bonded (gastight crimped) (gastight crimped)
* For aluminum conductors, see notes in Section 14.
1 When using ferrules, the max. conductor cross section accommodated is one size smaller than max. rating of terminal block.
