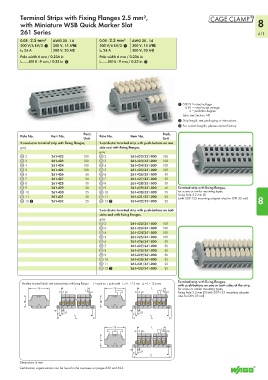

Page 413 - Wago_Rail-MountedTerminalBlockSystems_Volume1_2015_US.pdf

"

Terminal Strips with Fixing Flanges 2.5 mm²,
with Miniature WSB Quick Marker Slot 8
261 Series 411
0.08 - 2.5 mm² AWG 28 - 14 0.08 - 2.5 mm² AWG 28 - 14
500 V/6 kV/3 1 300 V, 15 AU 500 V/6 kV/3 1 300 V, 15 AU
I N 24 A 300 V, 20 A2 I N 24 A 300 V, 20 A2
Pole width 6 mm / 0.236 in Pole width 6 mm / 0.236 in
L 8 - 9 mm / 0.33 in 2 L 8 - 9 mm / 0.33 in 2

1 500 V = rated voltage
6 kV = rated surge voltage
3 = pollution degree
(also see Section 14)
2 Strip length, see packaging or instructions.
3 For custom lengths, please contact factory
Pack. Pack.
Pole No. Item No. Pole No. Item No.
Unit Unit
2-conductor terminal strip with fixing flanges, 2-conductor terminal strip with push-buttons on one
gray side and with fixing flanges,
gray
2 261-422 100 2 261-422/331-000 100
3 261-423 100 3 261-423/331-000 100
4 261-424 100 4 261-424/331-000 100
5 261-425 100 5 261-425/331-000 100
6 261-426 50 6 261-426/331-000 50
7 261-427 50 7 261-427/331-000 50
8 261-428 50 8 261-428/331-000 50
9 261-429 50 9 261-429/331-000 50 Terminal strip with fixing flanges,
10 261-430 25 10 261-430/331-000 25 for screw or similar mounting types,
fixing hole 3.2 mm Ø
11 261-431 25 11 261-431/331-000 25 (with 209-123 mounting adapter also for DIN 35 rail) 8
12 3 261-432 25 12 3 261-432/331-000 25
2-conductor terminal strip with push-buttons on both
sides and with fixing flanges,
gray
2 261-422/341-000 100
3 261-423/341-000 100
4 261-424/341-000 100
5 261-425/341-000 100
6 261-426/341-000 50
7 261-427/341-000 50
8 261-428/341-000 50
9 261-429/341-000 50
10 261-430/341-000 25
11 261-431/341-000 25
12 3 261-432/341-000 25

Terminal strip with fixing flanges,
Modular terminal blocks and terminal strips with fixing flanges L = pole no. x pole width L 1 = L + 7.2 mm L 2 = L + 13.6 mm with push-buttons on one or both sides of the strip,
<____ 28 ____> <________ L _______> <____ 28 ____> <________ L _______> for screw or similar mounting types,
1,6
1,6
> 6 < _> < > 6 < _> < fixing hole 3.2 mm Ø (with 209-123 mounting adapter
also for DIN 35 rail)
<_ 18 __> <_ 18 __>
> < 6 2,8 > < 6 2,8
<__
> <__________ L1 ___________> > <__________ L1 ___________>
<__
<____________ L2 ____________> <____________ L2 ____________>
<____ 28 ____> <________ L _______>
> 6 < 1,6
_> <
<_ 18 __>
> < 6 2,8
> <__________ L1 ___________>
<__
<____________ L2 ____________>
Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
