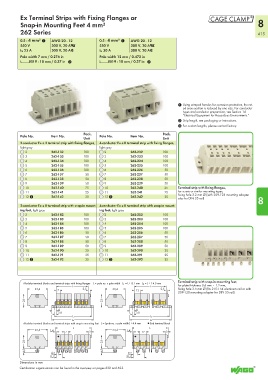

Ex Terminal Strips with Fixing Flanges or
Snap-in Mounting Feet 4 mm² 8
262 Series 415

0.5 - 4 mm² 1 AWG 20 - 12 0.5 - 4 mm² 1 AWG 20 - 12
550 V 300 V, 20 AU 550 V 300 V, 20 AU
I N 23 A 300 V, 20 A2 I N 30 A 300 V, 20 A2
Pole width 7 mm / 0.276 in Pole width 12 mm / 0.472 in
L 9 - 10 mm / 0.37 in 2 L 9 - 10 mm / 0.37 in 2

1 Using crimped ferrules for corrosion protection, the rat-
ed cross section is reduced by one size. For conductor
types and conductor preparation, see Section 14
“Electrical Equipment for Hazardous Environments.”
2 Strip length, see packaging or instructions.
3 For custom lengths, please contact factory
Pack. Pack.
Pole No. Item No. Pole No. Item No.
Unit Unit
2-conductor Ex e II terminal strip with fixing flanges, 4-conductor Ex e II terminal strip with fixing flanges,
light gray light gray
2 262-132 100 2 262-232 100
3 262-133 100 3 262-233 100
4 262-134 100 4 262-234 100
5 262-135 100 5 262-235 100
6 262-136 100 6 262-236 50
7 262-137 50 7 262-237 50
8 262-138 50 8 262-238 50
9 262-139 50 9 262-239 50
10 262-140 25 10 262-240 25 Terminal strip with fixing flanges,
11 262-141 25 11 262-241 25 for screw or similar mounting types,
fixing hole 3.2 mm Ø (with 209-123 mounting adapter
12 3 262-142 25 12 3 262-242 25 also for DIN 35 rail) 8
2-conductor Ex e II terminal strip with snap-in mount- 4-conductor Ex e II terminal strip with snap-in mount-
ing feet, light gray ing feet, light gray
2 262-182 100 2 262-282 100
3 262-183 100 3 262-283 100
4 262-184 100 4 262-284 100
5 262-185 100 5 262-285 100
6 262-186 50 6 262-286 50
7 262-187 50 7 262-287 50
8 262-188 50 8 262-288 50
9 262-189 50 9 262-289 50
10 262-190 25 10 262-290 25
11 262-191 25 11 262-291 25
12 3 262-192 25 12 3 262-292 25

Modular terminal blocks and terminal strips with fixing flanges L = pole no. x pole width L 1 = L + 8.1 mm L 2 = L + 14.5 mm Terminal strip with snap-in mounting feet,
L L for plate thickness 0.6 mm – 1.2 mm,
33,4 7 2,5 33,4 12 2,5 fixing hole 3.5 mm Ø (fits 210-154 aluminum rail or with
209-120 mounting adapter for DIN 35 rail)
23 23
6 6
2,8 2,8
L1 L1
L2 L2
Modular terminal blocks and terminal strips with snap-in mounting feet L = (pole no. x pole width) + 4.4 mm End terminal block
L L
33,4 1,4 7 3 33,4 1,4 12 3

23 23

4,5 4,2 4,5 9,2
11,2 21,2
Dimensions in mm
Certification organizations can be found in the overview on pages 622 and 623.
